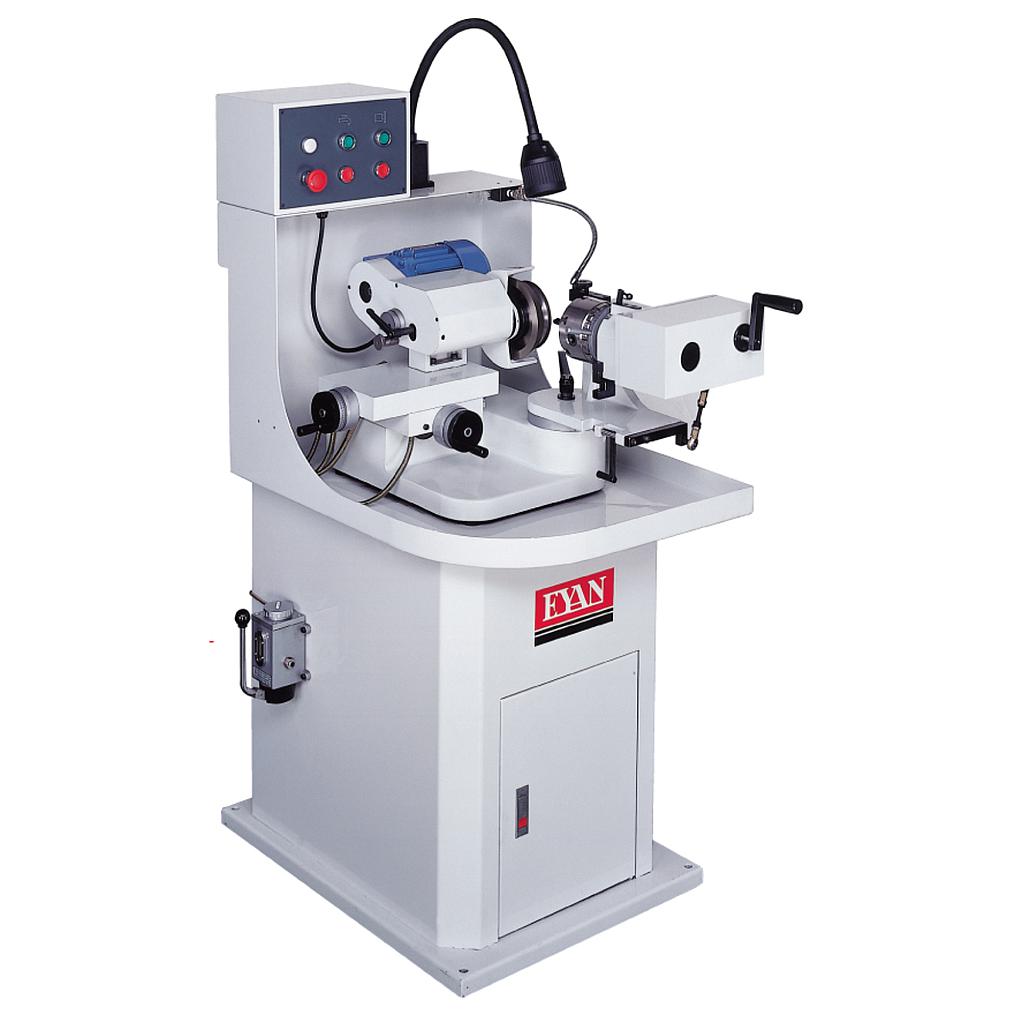

EYAN EY-32B 精密钻头研磨机

Grinding Range: Ø3 ~ Ø32 mm
Front Edge Angle: 40° ~ 180°
Back Rake Angle: 0° ~ 18°
Grinding Wheel Motor: 1/2 HP
Grinding Wheel Rotational Speed: 4300 RPM
Cooling System Motor: 1/8 HP
Net Weight / Gross Weight: 216 kg / 283 kg
Packing Dimensions: 102 x 92 x 164 cm
STANDARD ACCESSORIES :
- #1 Cam for single flute chamfering tool
- #2 Cam for drill
- #3 Cam for 3 flutes chamfering tool
- #4 Cam for 4 flutes tap
- Automatic Centering 6-jaw Chuck
- Flange with Counter Weight
- Manual Lubricator
- Morse Taper Sleeve MT2, MT3
- Quartez Working Light
- Operation Manual
- Tool box
- Precision Ball Screw for X, Y-axis Ø16 mm
- Whole Water Collecting Half Cover Stand
- CBN Grinding Wheel Ø150 x 20T x 31.75 mm
- CBN Grinding Wheel Ø125 x 2.0T x 31.75 mm
- Cooling Motor with Automatic Circulating System
- European Electrical Control Box
- Automatic Power Cut Protective Device for Leakage
- Red Emergency Button
