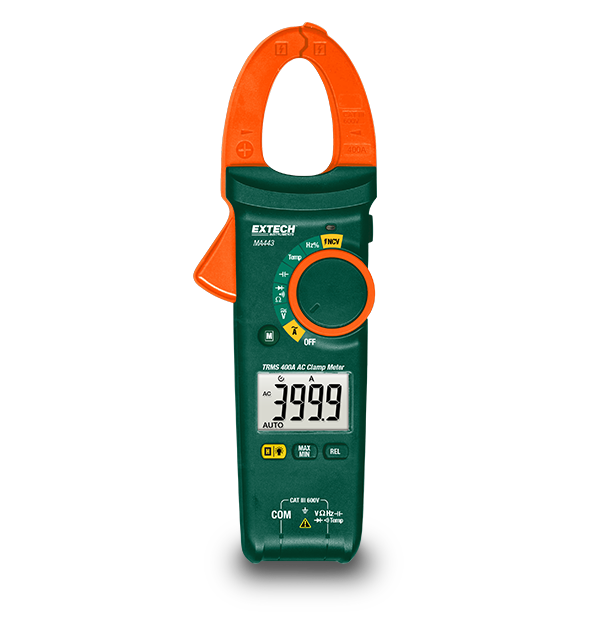

EXTECH MA443 钳形表 (AC: 400.0A; DC: 600V)

GENERAL SPECIFICATIONS

AC Current: 400.0A

AC Current Basic Accuracy: ±1.8%

AC Current Max Resolution: 1mA

AC Voltage: 600V

AC Voltage Basic Accuracy: ±1.2%

AC Voltage Max Resolution: 0.1mV

Capacitance: 40mF

Capacitance Max Resolution: 0.01nF

Continuity: Yes

DC Voltage: 600V

DC Voltage Basic Accuracy: ±0.8%

DC Voltage Max Resolution: 1mV

Duty Cycle: Yes

Frequency: 1MHz

Frequency Max Resolution: 0.01Hz

Jaw Size: 1.2" (30mm), conductors up to 500MCM

Non-Contact Voltage (NCV) Detector: 100 to 600VAC

Resistance: 40MΩ

Resistance Max Resolution: 0.1Ω

Temperature (Type K) Max Resolution: -40° to 1832°F (-40° to 1000°C)

Temperature (Type N) Basic Accuracy: 1°F/°C

True RMS: Yes

ADDITIONAL DETAILS:

Certifications: CE, ETL

Dimensions: 9 × 3 × 1.6" (228 × 77 × 41mm)

Power: 3 × AAA (1.5V) batteries

Safety Category: CATIII - 600V

Warranty: 2 years

Weight: 9.3oz (265g)
