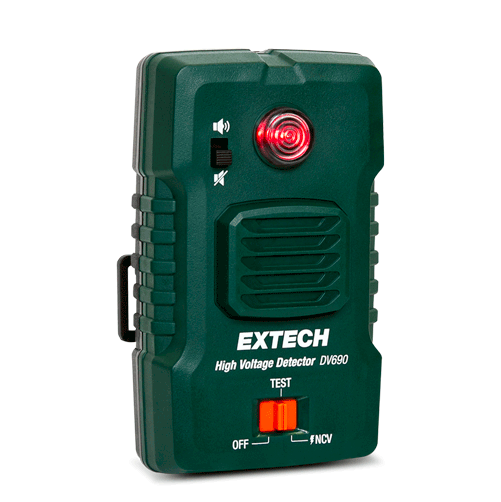

EXTECH DV690 高压测试仪 (100V~69kV AC)

AC Voltage: 100 V AC to 69 kV AC

AC Frequency: 50/60 Hz

Audible Indication: >106 dB at 0 cm

Visual Indication: 507 lux red LED

Power Source: 1.5 V (AA) x 3, ~120 hrs continuous use (typical)

EMC: EN 61326-1

IP Rating: IP54

Drop Test: 4 ft (1.2 m)

Weight: 0.49 lb (220 g)

Dimensions: 5.24 × 3.03 × 2.05 in (133 × 77 × 52 mm)

Datasheet
