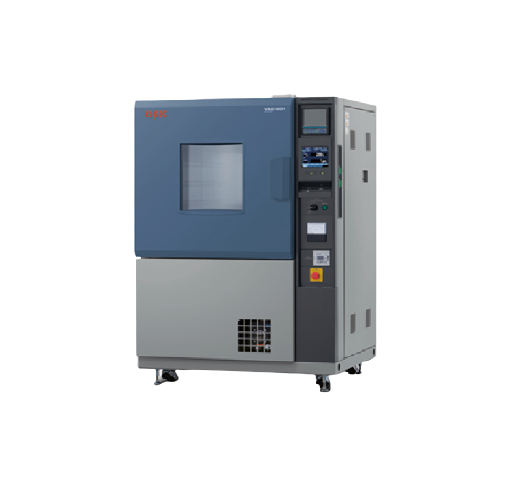

ESPEC VAC−201P 真空炉 (40~200℃, 933×102~1×102 Pa, 216L)

Pressure control system: PID control

Temperature performance:

      Temperature range: +40 to +200℃ (+104 to +392℉)

      Temperature constancy: ± 0.5℃ (vacuum), ±1℃ (atmospheric)

      Time to reach extreme temperature value: Within 70 min.

Pressure performance:

      Pressure range: 933×102 to 1×102 Pa

      Ambient pressure: Less than 133 Pa

      Pull-down time: From atmospheric pressure to 133 Pa within 15 min.

      Atmospheric pressure recovery time: Inlet open to atmosphere within 8 min.

Fittings: Leveling feet and casters (free wheel) 4pcs each, Time signal terminals × 2pcs

Effective internal volume: 216 L

Effective internal dimensions: W600×H600×D600 mm

Outside dimensions: W1052×H1542×D932 mm

Weight: 400 kg

Shelf support load resistance: up to 100kg (30kg/ stage, Total load of 5 stages)

Test area load resistance: up to 100kg

Allowable ambient conditions: +12 to +35℃ (+41 to + 95℉)

Power supply:

     220V AC 1φ 50/60Hz: 17.5 A

     230V AC 1φ 50/60Hz: 16.9 A

ACCESSORIES:

● Breaker handle stopper: 1

● Cartridge fuse (3A): 1

● User's manual: 1

● Warranty card: 1
