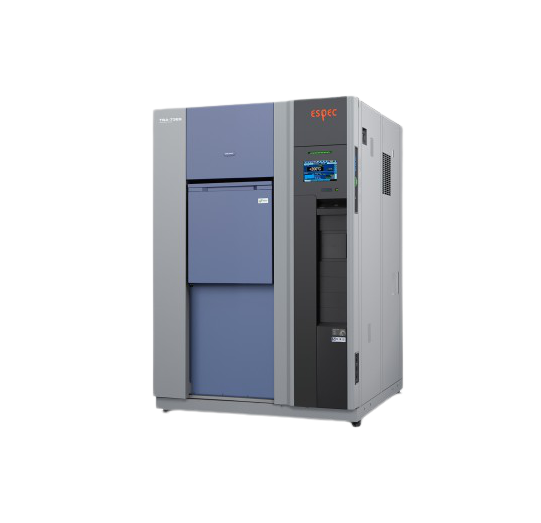

ESPEC TSA–43EL–A 空对空热冲击室 (50~200°C, –65~0°C)

System: Two-zone test by means of damper switching

Performance:

    Test area:

           High temp. exposure rangre: Ambient temp. +50 to +200°C (+122 to +392°F)

           Low temp. exposure range: –65 to 0°C (–85 to +32°F)

           Temp. fluctuation ±0.5°C (±0.9°F)

     Hot chamber:

           Temp. heat up time: Ambient temp. to +200°C (+392°F) within 10 min.

     Cool chamber:

           Temp. pull down time: Ambient temp. to –70°C (–94°F) within 70 min.

      Temp. recovery: within 15 min.

Inside Demensions (W x H x D mm): 240 x 460 x 370

Outside dimensions (W x H x D mm): 1140 x 1900 x 1270 [1305]

Weight: Approx. 730 kg

Utility requirements:

       Allowable ambient conditions: 0 to 40°C (+32 to +104°F)

       Power supply: 380/400/415V AC 3ø 50Hz: 27 A

Detail

ACCESSORIES:

• Specimen basket (18-8 Cr-Ni stainless steel/5 mesh metal basket):

  TSA–43

  (W230 x H40 x D356 mm/load capacity up to 2.5 kg): 2

  TSA–73

  (W400 x H40 x D356 mm/load capacity up to 5 kg): 2

  TSA–103

  (W640 x H40 x D356 mm/load capacity up to 5 kg): 2

  TSA–203

  (W640 x H40 x D656 mm/load capacity up to 17 kg): 2

  TSA–303

  (W960 x H40 x D656 mm/load capacity up to 17 kg): 2

• Shelf brackets:

  (shelf attachment pitch 60 mm, adjustable in 7 levels): 2 sets

• Cartridge fuse:

  5A (200V AC specification): 2

  10A (220/380/400/415V AC specification): 1

• Cable port rubber plug: 1

• Nipple (water-cooled specification only): 1

• Strainer (water-cooled specification only): 1

• Strainer element (water-cooled specification only): 1

• Operation manual: 1
