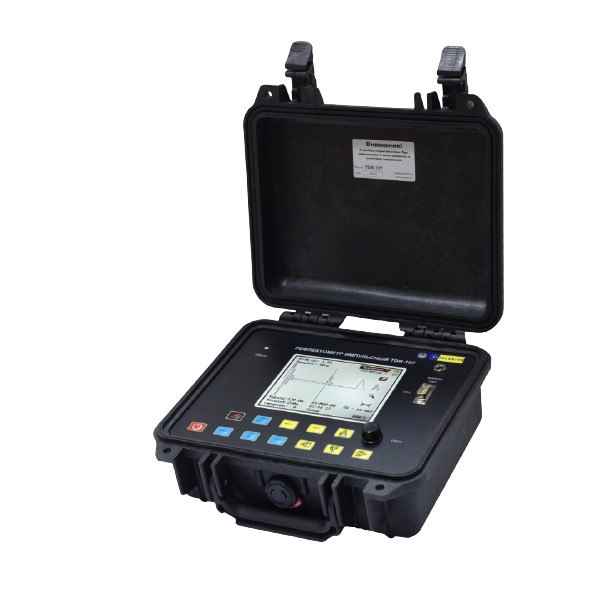

Ersted TDR-107 Cable Fault Locator

  • 制造商:Ersted
    Model: TDR-107
    来源: Russian Federation
    保障: 12 Month
    • 报价要求 Request a Quotation
  • Price (exclude VAT)101,699,555 VND
    Price (include VAT)111,869,511 VND
    • 加入购物车
    • 报价要求
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Specifications:

- Measurement modes: TDR

                                      ARM

- Monochrome LCD display: 5.7" (320×240 pixels)

- Range measuring distance (delay time): from 0 to 50000m (0 to 500ms)

- Sub-bands of distance: 0 – 250m, 500m, 1000m, 2500m, 5000m, 12500m, 25000m, 50000m

- Distance instrumental error: from 0.04% to 0.4% depending on subband measurements

- The effective sampling rate: 100MHz

- Range concerted resistance: from 25Ω to 600Ω

- Probe pulse duration: from 10ns to 100µs

- The amplitude of the probe pulse: 20V on open circuit

- Sensitivity: better than 1mV

- The dynamic range: not less 80dB

- The setting range of the velocity factor: VOP=33.3% ... 99.9% (step 0.1%)

- Time delay adjustment range (ARM): from 0 to 4ms (step 0.2ms)

- Synchronization (ARM): TDR input

                                         SYNC input

- Memory: 100 waveforms

- Continuous battery operating time: at least 8 hours

- Time of continuous operating time through the charger: unlimited

- Dimensions: 70x246x124mm

- Operating temperature range: from -20°C to +40°C

- Weight with a battery: not more than 2.5kg

Delivery contents:

- Cable Fault Locator TDR-107 (Tech specs 4221-108-23133821-11): x1

- AC Adapter 12V: x1

- Connecting cable 75 Ohm, BNC.M - «Alligator clip»: x1

- Connecting cable 75 Ohm, 1 m, BNC.M-BNC.M: x1

- User Manual (tech. spec. 4221-108-23133821-11): x1

- CD-ROM with software: x1

- Accessories bag: x1
