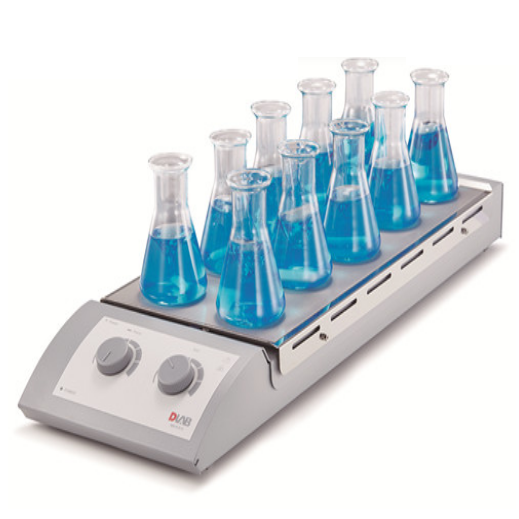

DLAB MS-H-S10 10-Channel Classic Hotplate Magnetic Stirrer (0~1100rpm; ~120°C)

Work plate dimension (WxD): 180x450mm

Work plate material: stainless steel plate with silicone film

Motor type: Brushless DC motor

Stirring positions: 10

Max. stirring quantity (H2O): 0.4Lx10

Max. magnetic bar (length): 40mm

Speed range: 0~1100rpm

Speed display: Scale

Temperature display: Scale

Heating temperature range: Room Temp.~120°C

Overheating protection: 140°C

Protection class: IP42

Motor rating input: 12W

Motor rating output: 4W

Power: 490W

Heating output: 470W

Voltage: 100~120/200~240V; 50/60Hz

Dimension (WxDxH): 182×622×65mm

Weight: 3.2kg

Permissible ambient temperature and humidity: 5~40°C, 80%RH

Please choose suitable power supply below:

+ US plug, 100V~120V/50Hz/60Hz

+ Cn plug, 200V~240V/50Hz/60Hz

+ Euro plug, 200V~240V/50Hz/60Hz

+ UK plug, 200V~240V/50Hz/60Hz

Optional accessories (refer to datasheet page 73)

Datasheet
