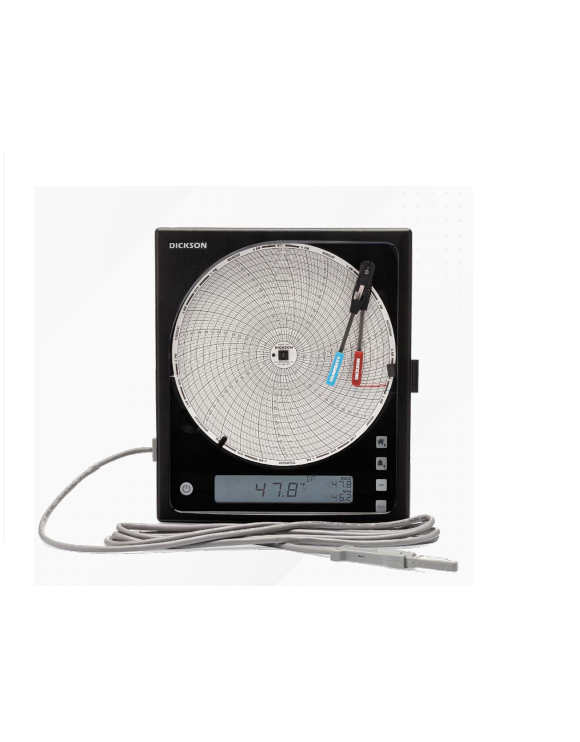

Dickson TH8-11 Temperature & Humidity Chart Recorder (5%~ 95% RH, -40°F ~ 185°F)

Alarm Type: Audio/Visual

Ambient Operating RH Conditions: 0-95% RH non-condensing

Ambient Operating Temperature Conditions: 32°F to 120°F (0°C to 50°C)

Battery Backup: (4) C Batteries

Battery Life: 1 Month (Avg)

Calibration Options: N100, N300, N400

Channels: CH1: Temperature; CH2: Humidity

Chart Rotation Speed: 24 Hour, 7 Day

Dimensions L x W x H: 9 3/8”x2 3/4”x10 1/8”

Display Dimensions: 5 1/8” x 1”

Display Type: LCD

Enclosure: Rugged Black ABS Case, Polycarbonate Door, Aluminum Dial

IP Rating: IP20

Included Accessories: AC Adapter, Red Pen, Blue Pen, (4) C Batteries, Quick Start Guide and Replaceable Sensor™ *Charts sold separately

Mounting Options: Free Standing or Wall Mount (With Keyhole)

Power Cord: 6 ft

Power Source: 120 to 240 VAC, 12 VDC (INTL fittings available); AC Adapter

Power Status Indicator LED Indicator

Unit Weight: 2.45lbs without batteries

Sensor Specifications

Replaceable Sensor™: Ambient Temperature & Humidity (RS010)

Humidity Accuracy: ±2.0% RH from 5% to 95% RH

Temperature Accuracy:

±0.8°F (±.44C) from 20°F to 122°F

±1.8°F (±1°C) remaining range

Temperature Range: -40°F to 185°F (-40°C to 85°C)
