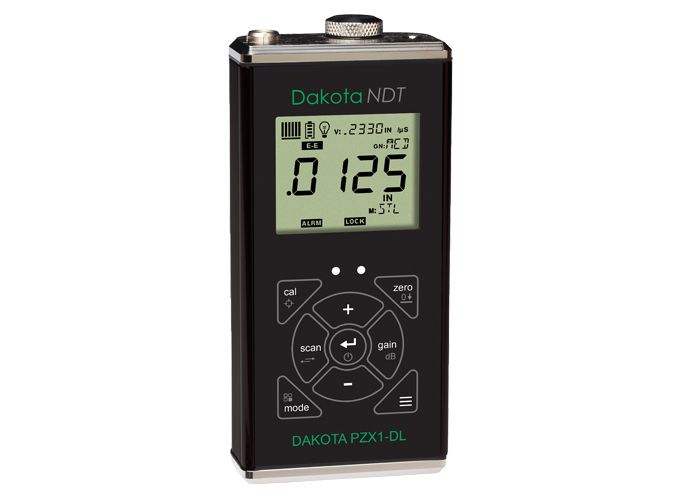

Dakota PZX1-DL Precision Thickness Gauge

Measurement Range:

PE: 0.63 - 914.4mm (0.025 - 36”)

EE (single delay line): 0.152 - 25.4mm (0.006 - 1”)

EE (single contact): 1 - 152.4mm (0.04 - 6”)

IE (Interface-Echo): 1.524 - 25.4mm (0.06- 1)

Plastic (PLAS): 0.127 - 6.35mm (0.005 - 0.250”)

Resolution: 0.01mm (0.001”)

Velocity Calibration Range: 309.88 - 18,542m/s (0.0122 - 0.7300 in/μs)

Operating Temperature: -10 to 60ºC (14 to 140ºF)

Power Supply: 2 x AA batteries

Battery Life: Alkaline – 35 hrs, Nicad – 18 hrs

Gauge Weight: 312g (11oz) - including batteries

Gauge Dimensions: 63.5 x 131 x 31.5mm (2.5 x 5.17 x 1.24”)

Packing List: Unit, standard 1/4" Delay Line Transducer (2 Delay Tips – 3/8” & 1/2” L) & Cable, Couplant, Manual, Certificate of Calibration, AA Batteries and Plastic Carrying Case.
