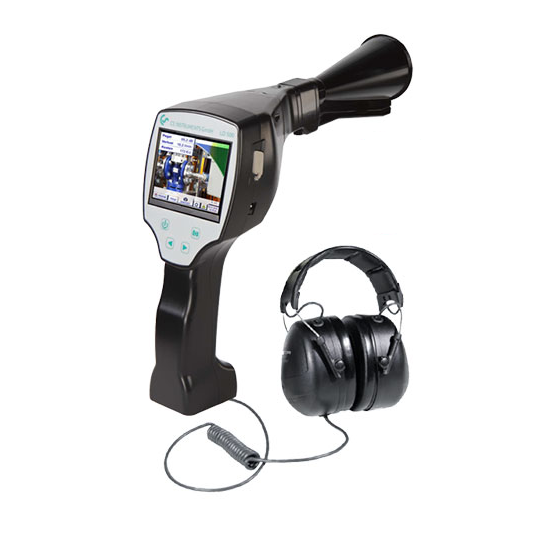

CS-Instrument LD 510 泄漏检测仪(带外部传感器输入)

Working frequency: 40 kHz ± 2 kHz
Connections: 3.5 mm stereo jack for headset. Power supply socket for connecting an external recharger
Laser:
Wave length: 645...660 nm
Output power: < 1 mW (laser class 2)
Display: 3,5“ Touch screen
Interface: USB interface
Data logger 2 GB SD memory card (100 million values)
Power supply: Internal rechargeable Li-Ion batteries approx. 9 h continuous operation, 4 h charging time
Ambient temperature: 0...+50°C
EMG: DIN EN 61326
Auto level: Adapts the sensitivity automatically to the environment and eliminates the ambient noise reliably
Sensitivity: min: 0.1 l/min at 6 bar, 5 m distance, approx.1€/year compressed air costs
Technical data external sensor input
Voltage supply:
Output voltage: 24 VDC ± 10%
Output current: 120 mA in continuous operation
Further sensors for connection to LD 510:
+ FA 510 dew point sensor for mobile devices, -80…+20°Ctd, incl. mobile measuring chamber, 5m connection cable and perforated protection cap 0699 1510
+ Flow sensor VA 500, Max version (185 m/s) sensor length 220 mm, incl. 5 m connection cable 0695 1124
+ Standard pressure sensor CS 16, 0…16 bar, ± 1 % accuracy of f. s 0694 1886
+ Differential pressure sensor 1.6 bar diff. 0694 3561
