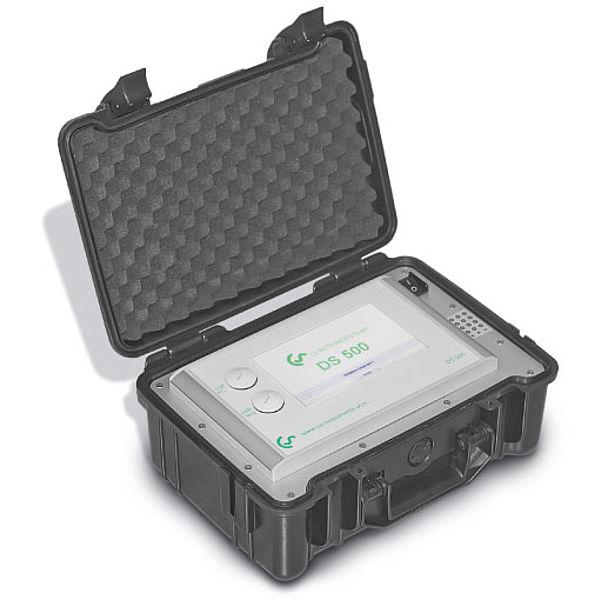

Cs-instruments DS 500 智能压缩空气和气体图表记录仪

Dimensions: 360x270x150 mm
Connection 4/8/12 x 12 PG for sensor and power supply
One RJ45 Ethernet port
Weight: 4.5 kg
Sensor inputs: 4/8/12 for analog and free allocation.
                            Digital CS sensor for dew point and consumption with SDIFA / VA 400 Series interface.
                            Digital sensor: RS 485 / Modbus RTU, other bus systems can be made as required.
                            The CS sensor is similar for pressure, temperature, clamp.
                            Similar sensors: 0/4 - 20 mA, 0 - 1/10/30 V, pulse, Pt100 / Pt1000, KTY.
Power supply for sensor
                            Output voltage: 24 VDC ± 10%
                            Output: 130 mA continuous operation, peak 180mA
USB, USB, Ethernet / RS 485 Modbus RTU / TCP interface, optional SDI bus system, optional web server
Memory card 2 GB of standard memory, SD memory card, optional up to 4 GB
Power supply 100 - 240 VAC / 50 - 60 Hz, special version 24 VDC
Screen color 7 "transmissive TFT touch screen, graphics, curve, statistics
Accuracy: See specifications for the sensor
Operating Temperature 0 - 50 ° C
Storage temperature -20 - 70 ° C.
