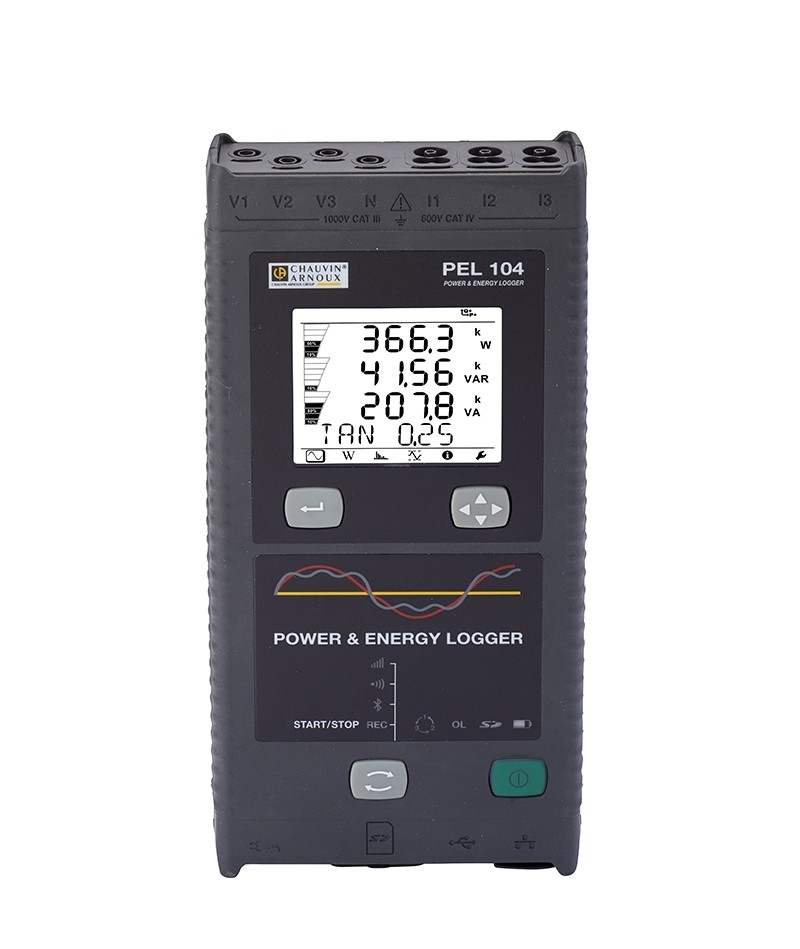

Chauvin Arnoux PEL 104 POWER-ENERGY LOGGER (1,000 Vac/dc, 1.4 kAdc, 3 CH)

Display: With triple digital display

Types of installations: Single-phase, split-phase, three-phase with or without neutral, and many other specific configurations

Number of channels: 3 voltage inputs, 3 current inputs (calculated neutral current)

Measurements

Network frequency: DC, 50 Hz, 60 Hz and 400 Hz

Voltage (measurement ranges / best accuracy: 10.00 -1,000 Vac/dc

Current (depending on sensors): 5 mAac to 10 kAac / 50 mAdc to 1.4 kAdc

Calculated measurements

Ratio: Up to 650,000 V / up to 25,000 A

Power: 10 W to 10 GW / 10 var to 10 Gvar / 10 VA to 10 GVA

Energy: Up to 4 EWh / 4 EVAh / 4 Evarh (E = 1018)

Phase: cos φ, tan Φ, PF

Harmonics: THD

Mechanical specifications

Dimension: 256 x 125 x 37 mm without sensor

Weight: 900g

State of delivery

1 carrying bag, 4 voltage cables, 4 crocodile clips, PC software (PEL Transfer),

1 set of rings/inserts, 1 x 600 V mains adapter, 1 SD card, 1 SD - USB adapter,

1 USB cable, 1 user’s manual in multiple languages, 1 quick start guide.
