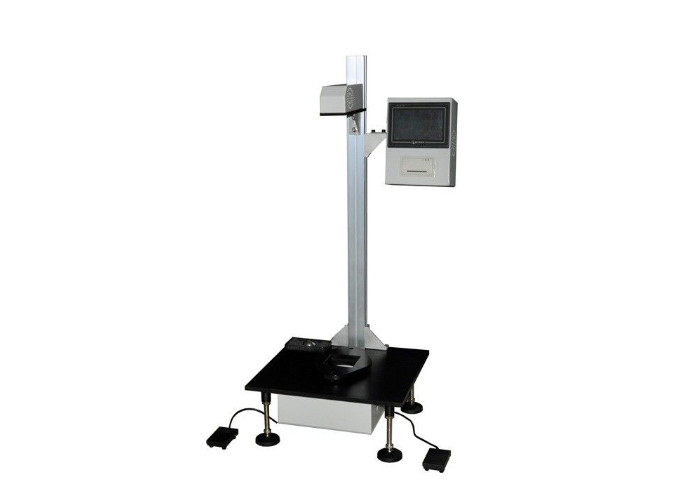

Cell Instruments FDT-01 落镖冲击试验仪

Aplication: Falling dart impact tester is used to measure the resistance performance of plastic films, sheets, and composite films, foils, paper, with less than 1mm thickness. Impact test can indicate the material ability to resist external destruction

Test Method Method A or Method B(optional)

Test Range Method A: 50~2000g Method B: 300~2000g

Dart Diameter Method A: 38±1mm Method B: 50±1mm

Impact Height 660mm/1500mm

Accuracy 0.1g (0.1J)

Specimen Clamp Pneumatic Clamp

Gas Supply 0.6 MPa

Gas Port Size Φ8 mm PU Tubing

Specimen Size > 150 mm x 150 mm

Power Supply AC 220V 50Hz

Net Weight: 70 kg

Instrument Dimension Method A: 500 mm (L) x 450 mm (W) x 1200 mm (H)

Method B: 500 mm (L) x 450 mm (W) x 2200 mm (H)
