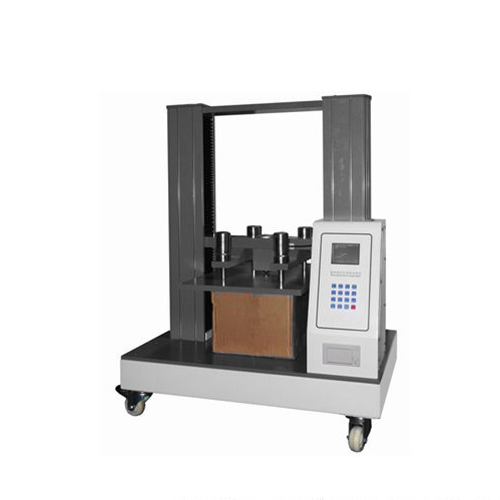

Cell Instruments CST-S 盒式压缩测试仪

Aplication:Box compression tester is for the compression strength, crushing force and stacking ability of medium and small size packaging like corrugated carton.

Pressure range: 0-10KN

Force resolution: 0.1N, Display error: ±2%

Display variation: ≤2%, Back to zero error: ±0.2%FS

Deformation measurement accuracy: ±1mm

Compressing speed adjustable range: 5mm/min~90mm/min

Compressing speed relative error: ±3%(within 5~90mm/min)

Standard compressing speed: 12mm/min

Stacking test speed: 5mm/min

Lower platen stroke: 800mm

Test space: 400mm(L)*600mm(W)*600mm(H)

            600mm(L)*800mm(W)*1000mm(H)

            1000mm(L)*1000mm(W)*1200mm(H)

            1200mm(L)*1200mm(W)*1200mm(H) are optional

Upper and lower platen parallelism degree  ≤1mm

Dimension: 850mm(L)*600mm(W)*1100mm(H)(varies with different test space)

Weight: 200kg(varies with different test space)
