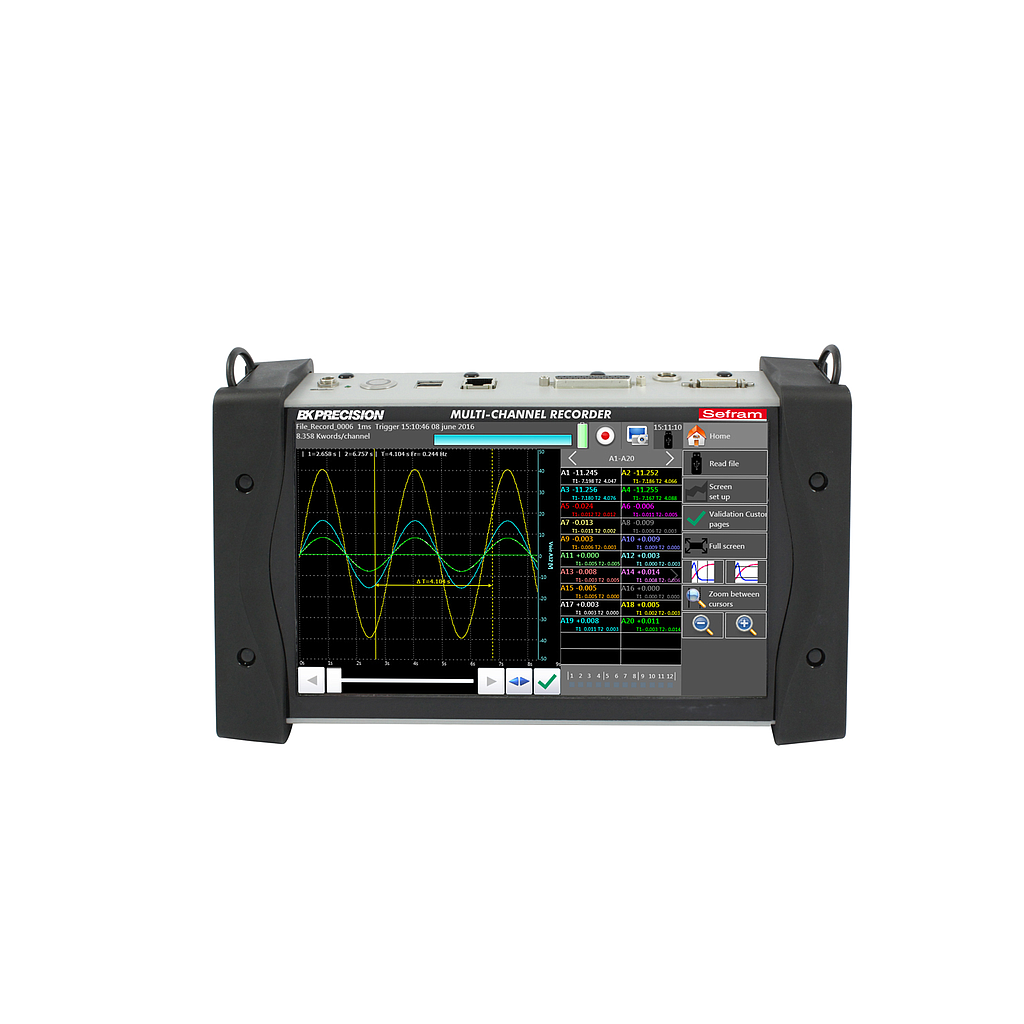

BK Precision DAS240-BAT 便携式多通道记录仪多功能测试仪

General
Acquisition System
Resolution : 16 bit
Acquisition System : Scan, one sample per channel
Sampling Rate
V >50 mV, 1 ms to 20 min
V ≤50 mVthermocouples and Pt100 / Pt1000 , 2 ms
Trigger
Date, delay, threshold, combination of thresholds (and/or), word on logic channels (and, or, slope, level)
Pre-trigger: Variable from 0 to 100k samples
Internal Storage
Internal Flash Drive Size: 32 GB
Maximum File Size: 2 GB
Environmental
Operating Temperature: 0 °C to 40 °C, 80% RH (no condensation)
Storage Temperature: -20 °C to 60 °C
Auxiliary
Display: 10” TFT touchscreen LCD, backlit, 1024 x 600 dots
Power Supply: 15 V / 4 A max with main adapter (100 / 240 VAC)
Interfaces: 2 x USB host, LAN (10/100 base-T with RJ45 socket)
Battery: Non removable, Lithium-ion
Typical Battery Life : 15 hours with standby mode, 10 hours without stand-by mode
Safety: Cat I 100 V, according to IEC61010-1
Weight: 3.3 lbs (1.5 kg)
Dimensions: (W x H x D) 2.6” x 11.7” x 6.9” (66 x 298 x 176 mm)
Supplied Accessories
Main adapter 100 / 240 V, manual (CD-ROM),
1 male connector with 25 pins male and cover,
1 cable (70 cm) for measurement module
connection, 1 measurement module (20
channels) with input terminals, a stylus,
a soft wipe, a screwdriver
Order Information for Optional Accessories:
902401000 20-channel module
902401050 Input terminal blocks 20 pack
902408000 Rugged carrying case
902407000 Logic channels patch cord
902406500 4 to 20 mA / 50 Ω shunt
902409000 19” rack-mount kit
