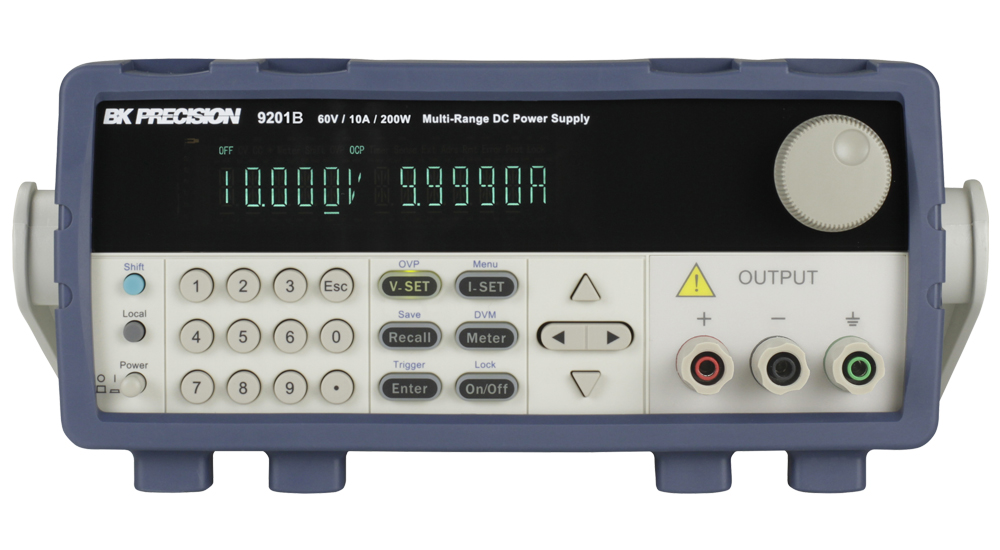

BKPRECISION 9201B 多量程可编程直流电源 (0~60V, 0~10A, 200W )

Output Rating:

      Voltage: 0 to 60 V

      Current: 0 to 10 A

      Power: 200 W

Line Regulation:

      Voltage: ≤ 0.01% + 5 mV

      Current: ≤ 0.05% + 4 mA

Load Regulation:

      Voltage: ≤ 0.01% + 8 mV

      Current: ≤ 0.1% + 6 mA

Ripple and Noise (20 Hz - 20 MHz):

      Voltage: ≤ 8 mVpp

      Current: ≤ 6 mArms

Programming Resolution:

      Voltage: 1 mV

      Current: 0.1 mA

Readback Resolution:

      Voltage: 1 mV

      Current: 0.1 mA

Programming Accuracy ± (% output + offset):

      Voltage: ≤ 0.03% + 5 mV

      Current: ≤ 0.1% + 10 mA

Readback Accuracy: ± (% output + offset)

      Voltage: ≤ 0.03% + 5 mV

      Current: ≤ 0.1% + 10 mA

General:

Remote Sense Compensation: 1 V

DVM Range: 0 to 60 V

DVM Accuracy: 0.02%+10 mV

DVM Resolution: 1 mV

Standard Interface: USB (USBTMC-compliant) and RS232

AC Input: 110/220 VAC (+/- 10 %), 47 Hz - 63 Hz

Operating Temperature: 32°F to 104°F (0°C to 40°C)

Storage Temperature: -4°F to 158°F (-20°C to 70°C)

Dimensions (W×H×D): 8.45x3.47 x13.96” (214.5x88.2x354.6 mm) 8.45x3.47x17.52” (214.5x88.2x445 mm)

Standard Accessories: User manual, power cord, & certificate of calibration

Optional Accessories: IT-E151 rack mount kit
