| 制造商: | Bird |

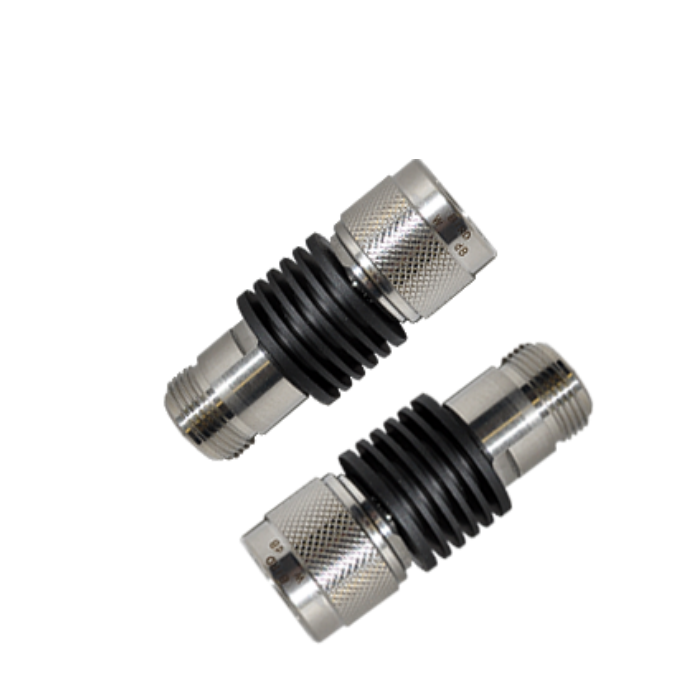

| Model: | 5-6A |
Power Rating: 5 W
Connector: N
VSWR and Frequency Range: 1.25:1 from DC to 6 GHz
Coolant Method: Dry, Convection Cooled
Impedance: 50 Ohm
Temperature: -40 to 40 °C (-40 to 104 °F)
PIM: -110 dBc Min.
AC Power: None
Humidity: 95% non-condensing
Standard Attenuation Values: 3, 6, 10, 20, 30 dB
Dimensions: Dia. 2.4” x 0.9” / 61 x 23 mm
Weight: 3.0 oz./86 g
Finish: Stainless Steel
