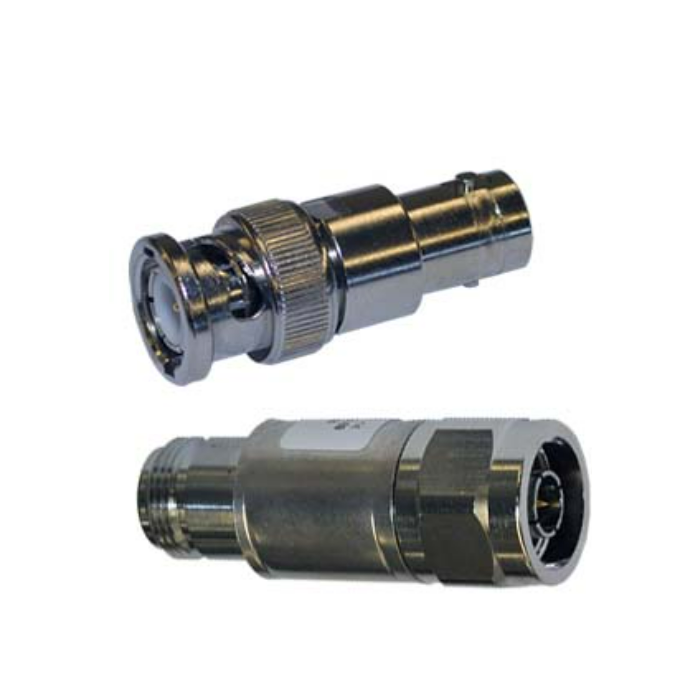

Bird 2-A 双向RF衰减器 (2W)

Power Rating: 2 W

Connector: BNC, N, SMA

VSWR and Frequency Range:

       BNC, N: 1.10:1 from DC to 1 GHz (1.25:1 from 1 to 4 GHz)

       SMA: 1.15:1 from DC to 2.5 GHz (1.30:1 from 2.5 to 6 GHz)

Coolant Method: Dry, Convection Cooled

Impedance: 50 Ohm

Temperature: -40 to 40 °C (-40 to 104 °F)

PIM: -110 dBc Min.

AC Power: None

Humidity: 95% non-condensing

Standard Attenuation Values: 3, 6, 10, 20, 30 dB

Dimensions: L x W x H:

     BNC, N: 2.4” x 0.8” Dia. ( 61 x 21 Dia. mm)

     SMA: 1.1” x 0.4” Dia. (27 x 11 Dia. mm)

Weight:

     BNC, N: 3.1 oz. (88 g)

     SMA: 1.2 oz. (34 g)

Finish:

     BNC, N: Tri Alloy

     SMA: Stainless Steel
