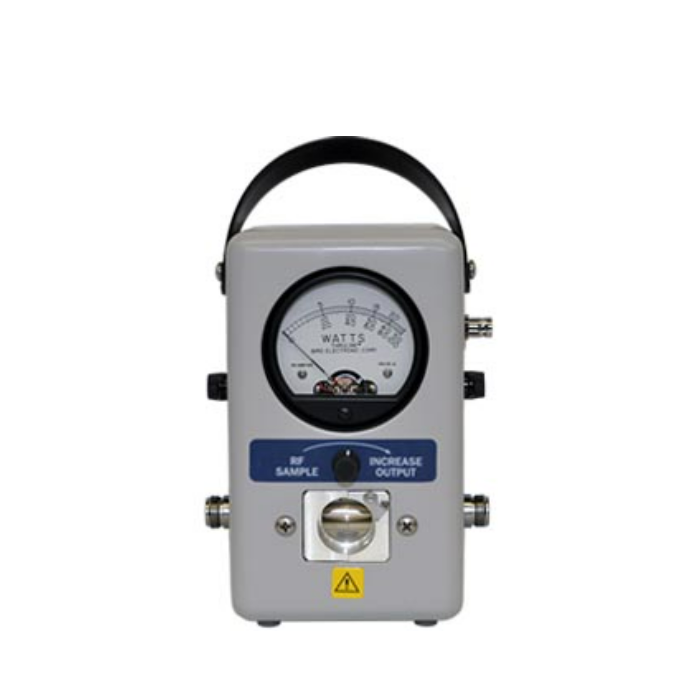

Bird 4431 射频瓦特计 (5 kW max)

Power Range: 5 kW max. 2 to 30 MHz

Frequency Range: 1 kW max. 30 to 1000 MHz

Insertion VSWR: with N Connectors 1.07 max. to 1000 MHz

Accuracy: ± 5% of full scale

Insertion Loss:

      0.1 dB max. (2 to 512 MHz)

      0.2 dB max. (512 to 1000 MHz)

Connectors: QC Type

Finish: Light Gray Powder Coat

Dimensions(H x W x D): with connectors 6.88 in x 5.13 in x 3.63 in/ 175 mm x 130 mm x 92 mm

Weight: 3.5 lbs. (1.6 kg)
