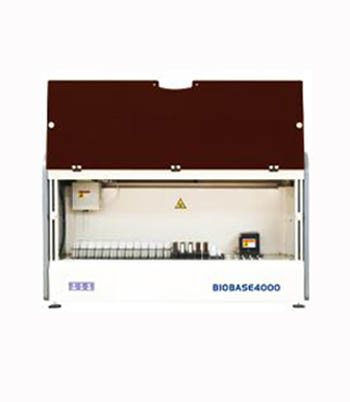

BIOBASE BIOBASE4000 自动Elisa 处理器

Manufacturer: BIOBASE

Model:  BIOBASE4000

Origin: China

Warranty: 12 months

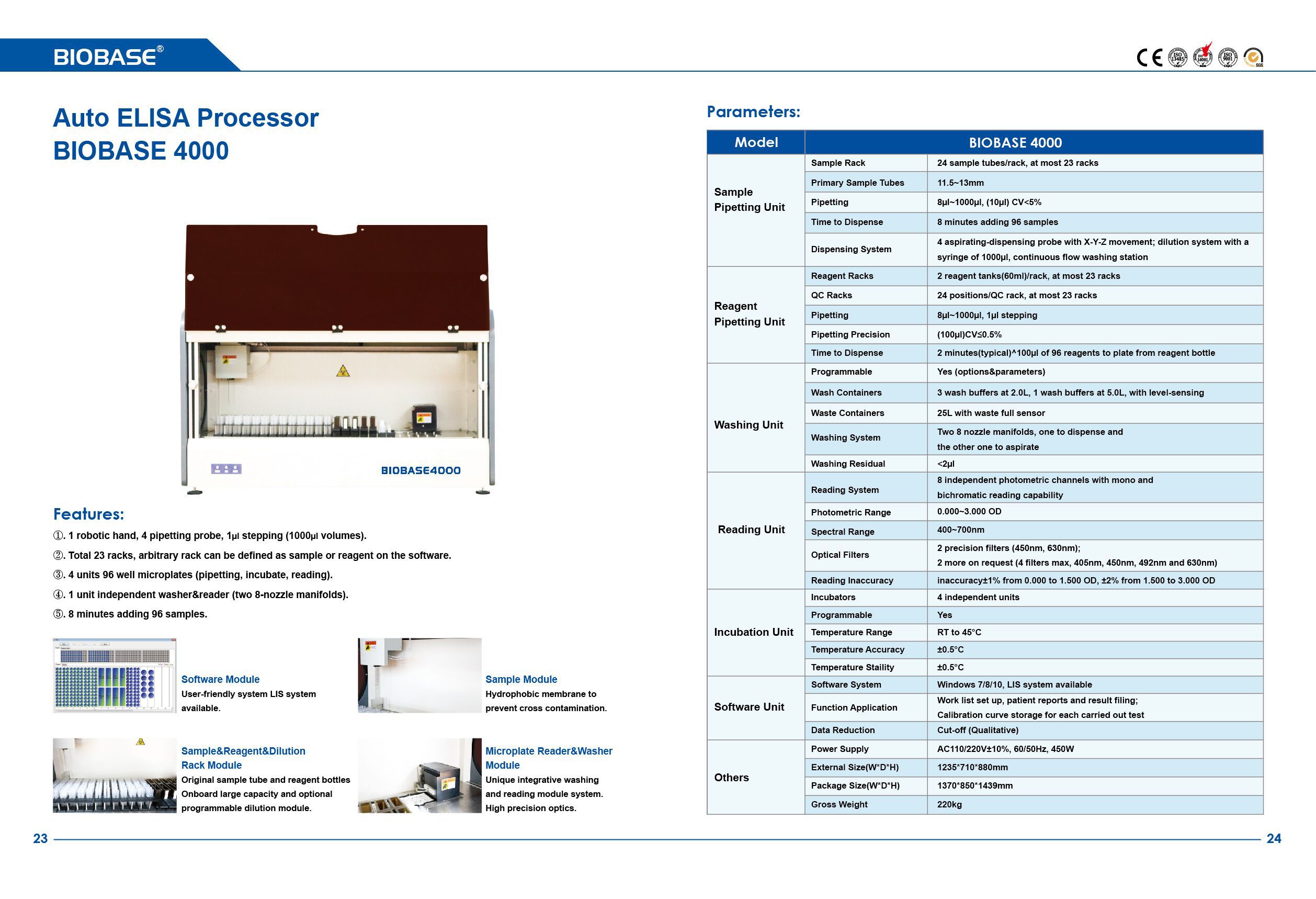

- 4 Pipetting probe, 1ul stepping (1000ul volumes).

- Total 25 racks, arbitrary rack can be defined as sample or reagent on the software.

-  4 units 96 well microplates (pipetting,incubator,reading)

Sample Pipetting Unit

Sample Rack: 24 sample tubes/rack, at most 23 racks

Primary Sample Tubes: 11.5-13mm

Pipetting: 8ul~1000ul, (10ul) CV<5%

Time To Dispense: 8 minutes adding 96 samples

Dispensing System: 1 aspirating-dispensing probe with X-Y-Z movement;dilution system with a syringe of 1000ul, continuous flow washing station.

Reagent Pipetting Unit

Reagent Racks: 2 reagent tanks(60ml)/ rack, at most 23 racks

QC Racks: 24 positions/QC rack, at most 23 racks

Pipetting: 8ul~1000ul,1ul stepping

Pipetting Precision: (100ul )CV≤0.5%

Time To Dispense: 2 minutes(typical)^100ul of 96 reagents to plate from reagent bottle

Programmable: Yes(options & parameters)

Wash Containers: 3 wash buffers at 2.0L, 1 wash buffers at 5.0L,with level-sensing

Waste Containers: 25L with waste full sensor

Washing System: two 8 nozzle manifolds, one to dispense and the other one to aspirate

Washing Residual: <2μl

Reading System: 8 independent photometric channels with mono and bichromatic reading capability

Photometric Range: 0.000 ~3.000 OD

Spectral Range: 400-700nm

Optical Filters: 2 precision filters (450and 630nm); 2 more on request (4 filters max, 405 nm, 450 nm, 492 nm and 630 nm)

Reading Inaccuracy: inaccuracy±1% from 0.000 to 1.500 OD, ±2% from 1.500 to 3.000 OD

Incubators: 4 independent units

Programmable: Yes

Temperature Range: RT to 45 °C

Temperature Accuracy: ±0.5℃

Temperature Staility: ±0.5℃

Software System: Windows 7 /8/10 or above, LIS system available

Function Application: Work list set up, patient reports and result filing; calibration curve ,storage for each carried out test

Data Reduction: Cut-off (qualitative)

Power Supply: AC220V+ 10%,50/60Hz,450W

Instrument Dimension (L*W*H): 1235*710*880mm

Package Dimension (L*W*H): 1370*850*1439mm

Total Weight: 220kg
