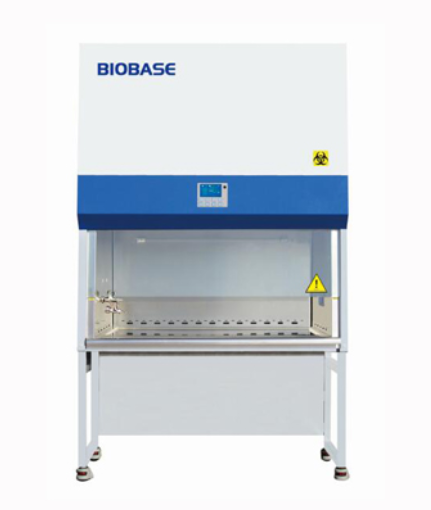

BIOBASE 11235BBC86 (3') II类A2型生物安全柜(2级,A2级)

Manufacturer: BIOBASE

Model:  11235BBC86(3')

Origin: China

Warranty: 12 months


- Motorized front window.

- Large LCD display, all information displayed.

- Automatic air speed adjustable with filter block.

- With memory function in case of power-failure.

- Side & back wall is made of single piece stainless steel.

- Interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window.

- Front 10° slanted to offer operator comfort while working for long time, reduce glare and maximize reach into the  work area.

External Size(W*D*H): 1087*775*2265mm

Internal Size(W*D*H): 910*600*660mm

Work Surface Height: 750mm

Max Opening: 520mm (21'')

Tested Opening: Safety height 200mm (8'')

Airflow Volume: Inflow: 348m3/h(205cfm); Down flow: 65%:649m3/h(382cfm); Exhaust: 35%:348m3/h(205cfm)

Front Window: Motorized. Two-layer laminated toughened glass ≥5mm. Anti UV

HEPA Filter   : Two, 99.999% efficiency at 0.3um, filter life indicator

Filter Guard Type: Aluminum alloy frame

Noise: NSF 49≤61 dB/EN 12469≤58 dB

Illumination: ≥1000Lux

Display: LCD Display

Waterproof Socket : 2, Total consumption:≤500W

Tap: Water tap*1, Gas tap *1

Ground Resistance: ≤ 0.10Ω

Power Supply: AC220/110V±10%, 50/60Hz ±1Hz, Full load Amps: 9A, BTU/Hr: 1689

Consumption: 300W

Alarm: Abnormal airflow velocity; Filter replacement; Front window at unsafe height

DC Motor: One ECM motor, 110V& 220V acceptable, Speed adjustable,

high efficiency and low power consumption

Material: Working area: 304stainless steel/  Frame and Decorative Plate:

cold-rolled steel with anti-bacteria power coating

UV Lamp  : 18W; Germicidal UV lamp, Emission of 253.7 nanometers for most efficient decontamination

Illuminating Lamp: 10W*2; LED lamp

Package Size (W*D*H): 1220*1000*1840mm

Gross Weight: 270kg


Standard Accessory

LED lamp                       2pc

UV lamp                         2pcs

Base stand                     1pc

SS water & gas taps        1pc

Drain valve                     1pc

Waterproof sockets         1pc


Optional Accessory

Armrest                                    1pc

Airflow tester                            1pc

Formalin fumigation sterilizer        1pc

Infrared sterilizer                        1pc

Adjustable base stand                1pc

Remote control                         1pc
