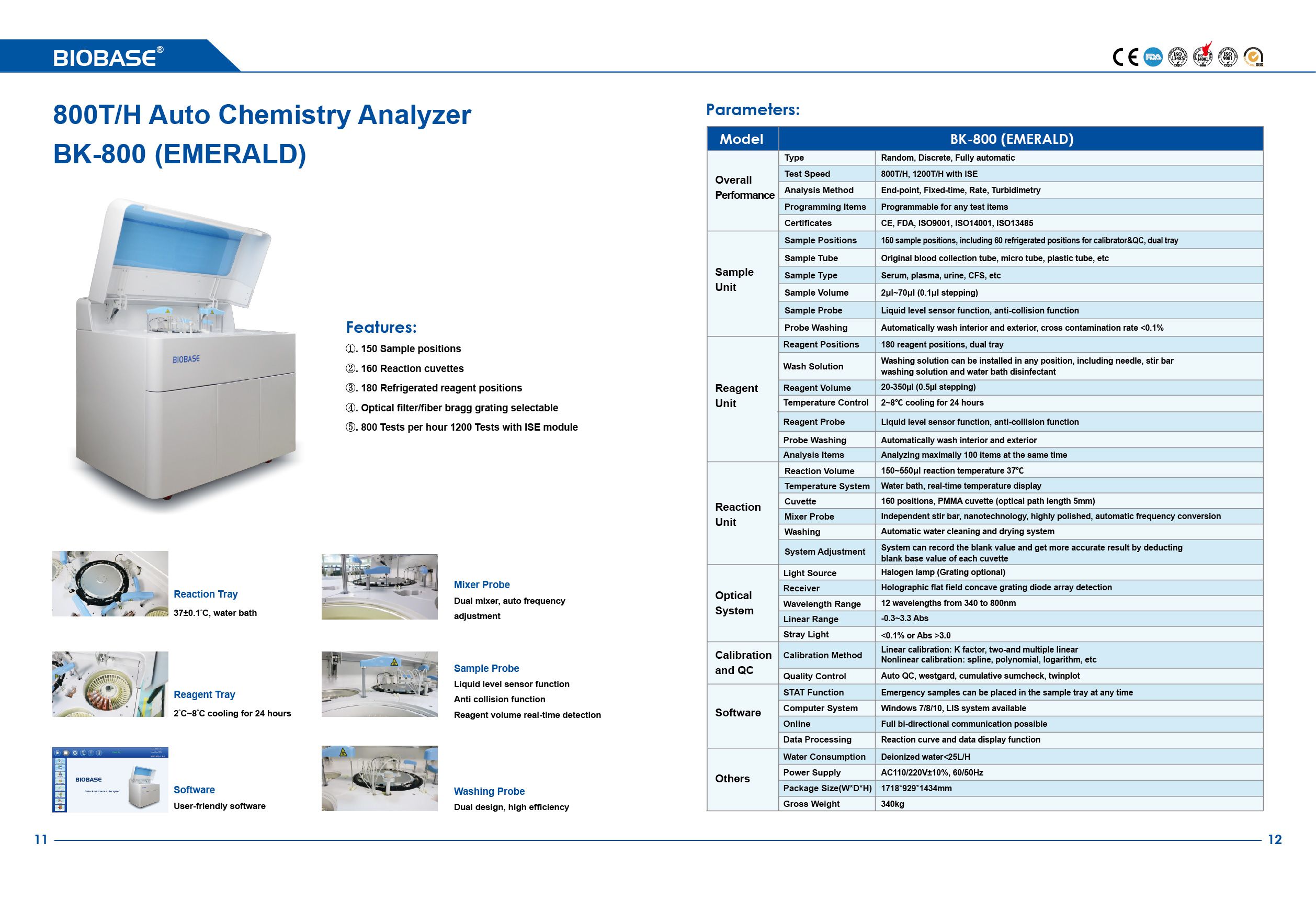

Manufacturer: BIOBASE

Model:  BK-800(EMERALD)

Origin: China

Warranty: 12 months

Features:  150 Sample positions; 160 Reaction cuvettes; 180 Refrigerated reagent positions; Optical filter/fiber bragg grating selectable; 800 Tests per hour 1200 Tests with ISE module

Type:Random, Discrete, fully automatic

Test Speed:5800T/H, 1200T/H with ISE

Analysis Method:End-point, Fixed-time, Rate, Two-points, Turbidimetry

Programming Items: Programmable for any test items

Sample unit

Sample Settings: 150 sample positions, including 60 refrigerated positions for calibrator&QC, dual tray

Sample Tubes: Original blood collection tube, micro tube, plastic tube, etc

Sample Types : Serum, plasma, urine, CFS, etc

Sample Volume: 2ul ~70ul (0.1ul stepping)

Sample Probe: Liquid level detection function; anti-collision function

Probe Washing: Automatically wash interior and exterior, ross contamination rate <0.1%

Analysis Items: Analyzing maximally 100 items at the same time

Reagent unit

Reagent Position: 180 refrigerated reagent positions; dual tray

 Wash Solution:  Washing solution can be installed in any position, including needle, stir bar washing solution and water bath disinfectant

Reagent Volume: 20~350μl (1μl stepping)

Temperature Control: 2°C~8°C cooling for 24 hours

Reagent Probe: Liquid level sensor function;  anti-collision function

Probe cleaning: Automatically wash interior and exterior

Reaction unit

Reaction Volume: 150ul~550ul Reaction Temperature 37℃

Temperature System: Water bath, real-time temperature display

Cuvettes : 160 positions, PMMA cuvette (optical path length 5mm)

Mixer Probe : Independent stir bar, nanotechnology, highly polished, automatic frequency conversion

Washing : Automatic water cleaning and drying system

System Adjustment: System can record the blank value and get more accurate result by deducting blank base value of each cuvette

Light Source:Halogen lamp (Grating optional)

Receiver : Holographic flat field concave grating diode array detection

Wavelength Range: 12 wavelengths from 340 to 800nm

Linear Range: -0.3~3.3 Abs

Stray Light:<0.1% or Abs >3.0

STAT Function:Emergency samples can be placed in the sample tray at any time

Computer System: Windows 7/8/10, LIS system available

Online: Full bi-directional communication possible

Data Processing: Reaction curve and data display function

Water consumption: Deionized water<25L/H

Power Supply :AC110/220V±10%, 60/50Hz

Package Size: 1718*929*1434mm

Gross Weight: 340kg
