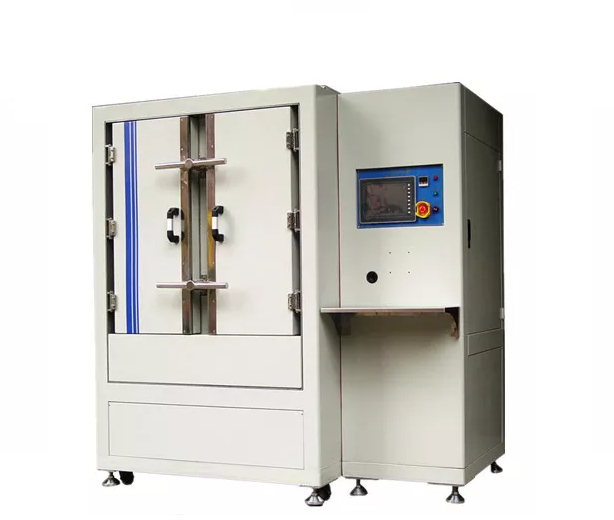

ASLI HLP-408(D~F)高低温低气压试验箱(600x850x800mm)

- Internal Dimensions WxHxD (mm): 600x850x800
- External Dimensions WxHxD (mm): 1400x1900x1900
- Pressure Range: Atmospheric pressure(101 Kpa)~0.5 Kpa
- Pressure Deviation:
+ Pressure 50 Kpa ~10 Kpa, ±3 Kpa;
+ Pressure 10 Kpa ~50 Kpa, ±1.0 Kpa;
+ Pressure 1 Kpa ~10 Kpa, ±0.1 Kpa
- Velocity of Depressurization: Atmospheric pressure ~1kpa≦40min (Room temperature situation);
- Low Air Pressure Mode: Vacuum pump
- Temperature Range:
+ Low Temperature( D:-40℃ F:-70℃)
+ High Temperature 150℃
- Analytic Accuracy of Temperature: 0.1 ℃
- Distribution Uniformity of Temperature:
+ When temperature≦100℃, ±3.0℃ (Atmospheric pressure and non load),
+ When temperature>100℃, ±5.0℃ (Atmospheric pressure and non load)
- Control Accuracy of Temperature: ±0.5℃
- Temperature Rising/Falling Speed Rate:
+ Temperature rising approx. 0.2~1.2℃/min,
+ Temperature falling approx. 0.2~1.2℃/min;
- Internal and External Material: Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or SEE cold-rolled steel with paint coated.
- Insulation Material: Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials
- Cooling System: Wind cooling or water cooling / single segment compressor(-40℃, double segment compressor -70℃)
- Protection Devices: Fuse-free switch, overloading protection switch for compressor,fault warning system,high and low voltage coolant protection switch,over-temperature protection switch, fuses, fault warning system, water short storage warning protection
- Compressor: French Tecumseh Brand, Germany Bizer Brand
- Power: AC 380V, 3∮ 5 Lines, 50/60HZ
