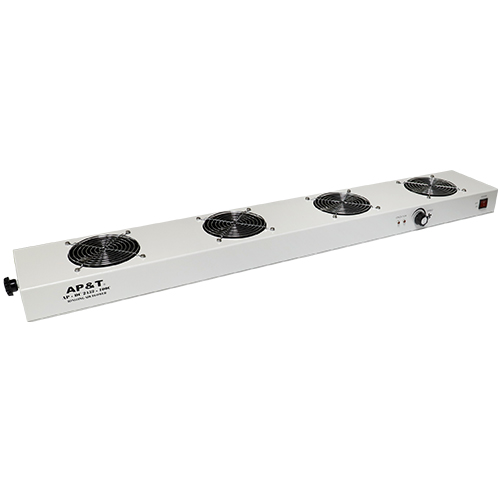

AP&T DC2452-100C 四风扇顶部离子风机 (＜25W)

Input voltage: AC220V/50Hz or 110V/60Hz

Power: ＜25W

Working voltage: ±DC4000-DC7000V

Ion emission: Steady state DC

Transmitting electrode: Tungsten alloy

Discharge structure: Uncoupled electrical contact (discharge cylinder)

Discharge range: 1020*300*750mm (L*W*H）

Discharge speed: ≤3s (450mm from the center of the air outlet)

Ion balance: ≤/±10V/ (450mm from the center of the air outlet)

Alarm indication: Power indicator is on and working normally

Air volume: ≤4*89.1CFM

Audio noise: ≤65db (150mm away from the front of the air outlet)

Ozone thickness: ≤0.05ppm (150mm away from the front of the air outlet)

Operating temperature: 0-50℃

Working humidity: 30-70%RH

Dimensions: 1040x175x118mm (LxWxH)

Blower material: aluminium dusting

Packing accessories: 1 pair of L-shaped aluminium spray powder mounting bracket, 1 pair of bakelite screw handles (M6x12)

Net weight: 3100g (include power cord, bracket accessories)

Gross weight: 5150g

Certification: CE
