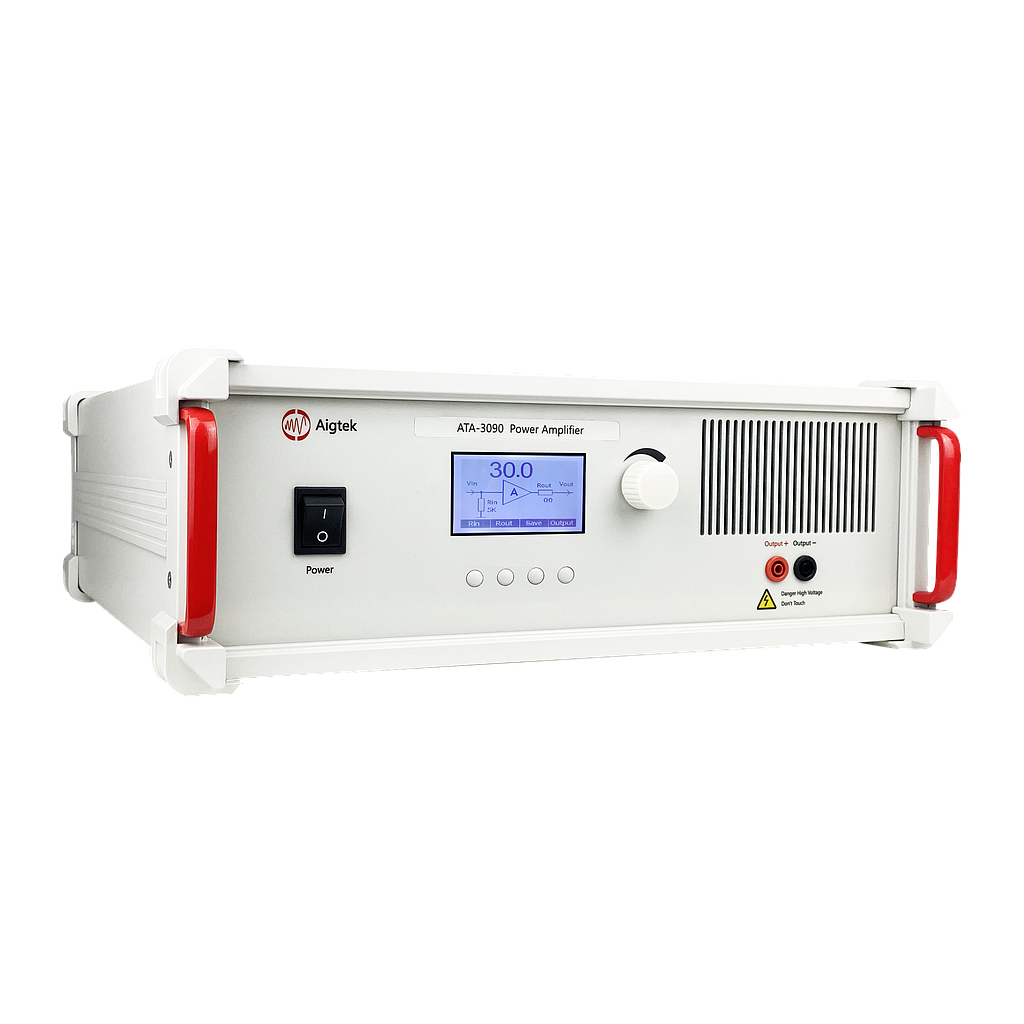

Aigtek ATA-3090 功率放大器 ((-3dB) DC ~ 100kHz, 90Vp-p (±45Vp), 18Ap, 810Wp, 1CH)

Output form: Single output

Bandwidth (-3dB): DC~100kHz

Maximum output voltage: 90Vp-p (±45Vp)

Maximum output current: 18Ap

Maximum output power: 810Wp

Fuse: 10A/250V

Voltage gain: x0~30 (0.1 step)

Load RL upper limit: ≥2.5Ω

Output resistance: 0.1Ω /50Ω (Customizab)

Slew Rate: 30V/μs

Input resistance: 50Ω / 5kΩ

Input amplitude: 0~10Vp-pMAX

Output voltage error: ≤±3%FS@1kHz

Total harmonic distortion (THD): ≤0.1%@1kHz,90Vp-p

Output voltage zero-point drift: ≤0.3V

Signal-noise ratio(SNR): ≥80dB

Output Connector: 4mm Banana socket

Protection: Overcurrent protection

Signal Ground: It is connected with the grounding of the shell and the power line

Supply voltage: AC220V±10%,50Hz

Operating temperature: 0℃~45℃

Storage temperature: -20℃~50℃

Humidity: ≤80%RH,no condensation

Size: (W * H * D) 440*163*470mm
