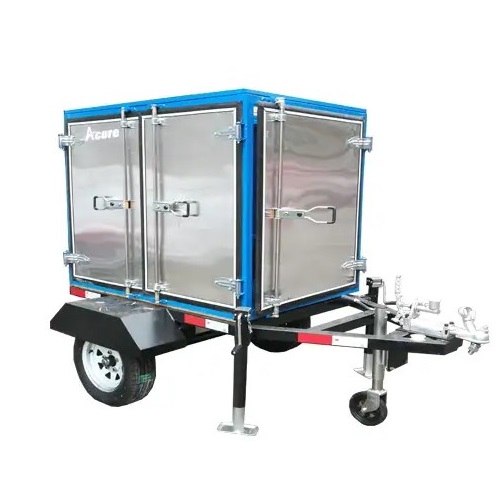

Acore MTP-100 Mobile Transformer Oil Purifier (100L/min,66kw)

Capacity (L/min): 100

Vacuum pressure: -0.06~-0.099 Mpa

Vacuum system: Double Stages

Working pressure: ≤ 0.4 Mpa

Temperature range: 20-80℃

Power supply: 380V, 50HZ, 3PH ( or Customized )

Working noise: 65 dB

Trailer type: Single Axle

Heating power (kw): 60

Total power (kw): 66

Inlet/outlet(mm): 50

Purifier Weight (kg): 900

Trailer Weight (kg): 500

Purifier Dimension (mm) (L x W x H): 1850×1600×1750 (mm)

Trailer Dimension (mm) (L x W x H): 2900×1650×1000 (mm)


Specifications after purification process:

Item Specifications

Breakdown voltage: ≥ 70KV

Water content: ≤ 3ppm

Gas content: ≤ 0.05%

Filtering rate: ≤ 0.5 micron (ISO 14/12/10)

Flash point (close cup): ≥135℃

Interfacial tension performance: > 40 Dynes / cm at 25 ℃

Power factor performance: < 0.005 % at 25 ℃

Acid value: ≤0.03 mgKOH/g
