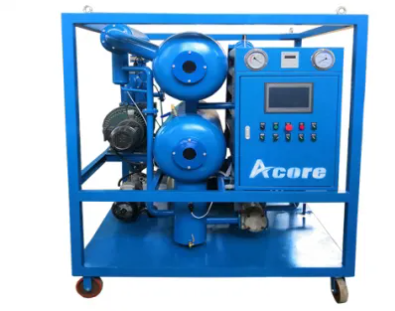

Acore DVTP-150 High Vacuum Transformer Oil Purification Machine (9000L/hr)

Capacity(L/min): 150 (9000L/hr)

Vacuum pressure: -0.08~-0.099 Mpa

Working pressure: ≤ 0.4 Mpa

Ultimate vacuum: ≤ 5 Pa

Temperature range: 20-80℃

Breakdown voltage: ≥ 70KV

Parameter after purification

Water content: ≤ 3ppm

Gas content: ≤ 0.05%

Filtering rate: ≥ 99.5%

Filtering precision: ≤1 micron

Dielectric loss tgδ: ≤ 0.3% (90℃)

Weight (kg): 1200

Dimension(mm)

L: 1850

W: 1800

H: 1850

Detail

Datasheet

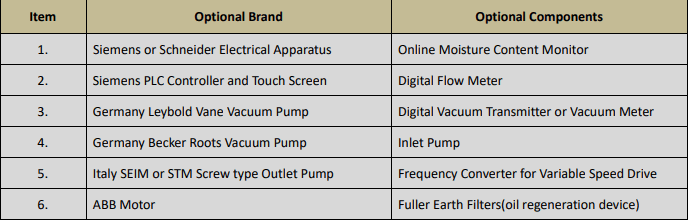

Optional Components or Brand Available
