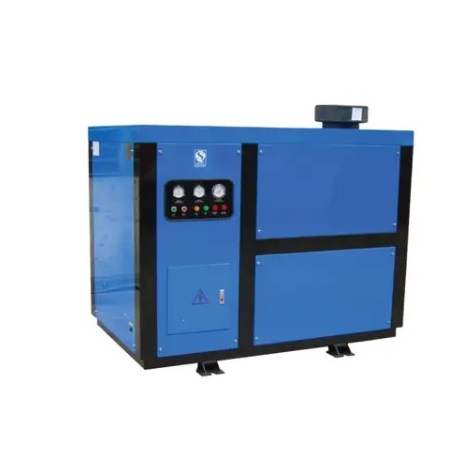

Acore DRA-13 高温输入冷冻式干燥机 (14.5Nm3/phút)

Capacity (Nm3/min): 14.5

Connection (mm): 2”

Heater (kw): 4

Blower (kw): 2.2

Weight (kg): 1100

Dimension (mm) (L x W x H): 1600×1350×2250

Working pressure: 5-10 bar

Pressure Dew point: -40℃~-70℃

Switchover: 2-8h

Pressure drop: ≤ 0.2 bar

Temperature of inlet air: ≤45℃

Ambient Air temperature: ≤45℃

Oil content in inlet air: <0.1mg/m3

Control method: PLC

Desiccant: activated alumina and molecular sieve

Protection grade: IP65

Power supply: 380V, 50Hz, 3 Phase (or customized)
