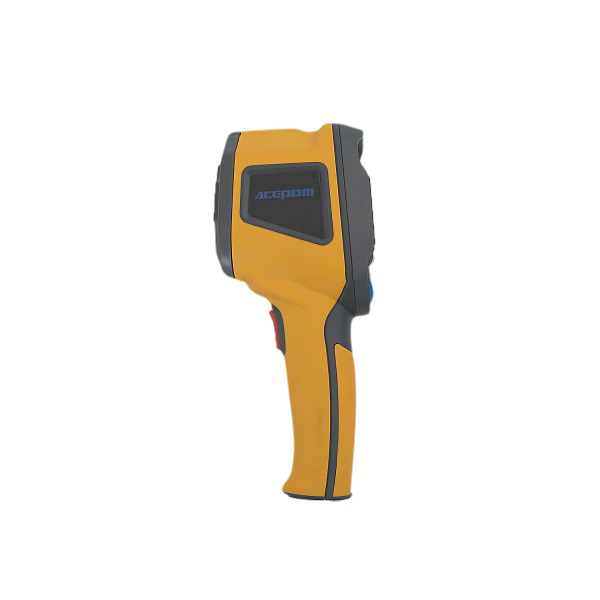

Acepom E10 红外热像仪 (-25~380˚C; 38720 pixel)

Infrared temperature measurement:

      Basic precision: ±1.5% or 1.5˚C

      Temperature range: -25˚C to 380˚C, -13 to 716˚F

      Emissivity: 4 default value and adjustable within 0.1-0.99

      Measurement resolution: 0.1˚C/˚F

      Response time: 150ms

      Wave length: 8-14μm

      Laser pointer: Double laser to point the test area

Thermal imaging tech:

      Thermal imaging module: Microbolometer focal plane array (FPA)

      Image resolution(HxW): 4800 pixel (80x60)

      Wave length: 8-14μm

      Field of view (H x W): 50°x38.6°

      Thermal imaging sensitivity: 150mk

      Frame frequency: 9Hz

      The palette: 2 (Off-white, iron red)

      Image format: Bitmap (BMP) image with temperature and emissivity

General parameters:

      Size (HxWxL): 7.3x2.2x3.7’’(186x55x94 mm)

      Display: 2.0” TFT LCD

      Display resolution(W xH): 38720 pixel (176x220)

      Battery: Nimh batteries

      Continuous battery life: 2~3 hour

      Memory card: 4GB mini SD card

      Work temperature: -10 to 45˚C, 14 to 113˚F

      Drop resistance: 2 meter (6.5 feet) designed
