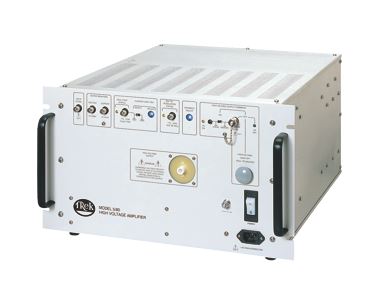

Trek 5/80 高压功率放大器

Output Voltage Range: 0 to ±5 kV DC or peak AC
Output Current Range: 0 to ±80 mA DC or peak AC
Input Voltage Range: 0 to ±5 V DC or peak AC
Input Impedance: 10 kΩ, nominal
DC Voltage Gain: 1000 V/V
DC Voltage Gain Accuracy: Better than 0.1% of full scale
Offset Voltage: Less than ±2 V
Output Noise: Less than 1.0 V rms*
Slew Rate (10% to 90%: Greater than 1000 V/µs
Settling Time: Less than 50 µs for a 0 to 5 kV step
Large Signal Bandwidth (3% distortion): DC to greater than 50 kHz
Large Signal Bandwidth(-3dB):DC to greater than 60 kHz
Small Signal Bandwidth (-3dB): DC to greater than 75 kHz
Dimensions: 279 mm H x 482 mm W x 654 mm D
Weight: 24 Kg
