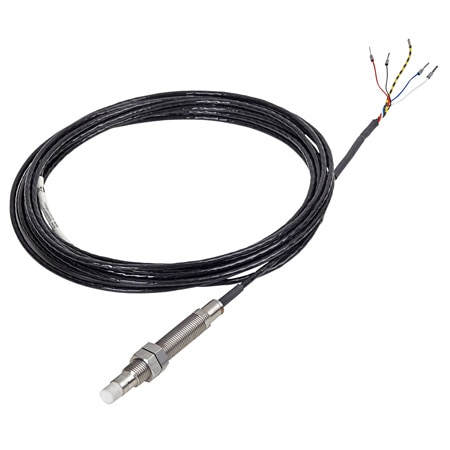

Bộ truyền dịch chuyển không tiếp xúc B&K Vibro OMEGA DT-121.AP/6/62/105/15/050/000 (Displacement Measurement, UNF, 3/8 in)

Weight: 150 g

Accuracy: ± 0.5 %

Approvals: CE Conformity as per EMC Directive EN 61326-1: 2013 EN 50581: 2012

Materials: Ceramic

Cable Type: Insulated

Sensitivity: 75.0, 93.8 µm/mA

Cable Length: 5 m

Tip Diameter: 7.2 mm

Accuracy Note: 0 °C to + 45 °C : ±0,2 % from full scale (FS) Overall operating temperature range : ±0.5 % (FS) Deviation (DSL) from best fit straight line with nominal loop sensitivity in the temperature range of: 0 °C to +45 °C : ±25 µm Overall operating temperature range : ±75 µm

Output Detail: 4 - 20 mA, live-zero

Cable Diameter: 2.9 mm

Housing Length: 4.13 in

Supply Voltage: 24 Vdc

Loop Resistance: 250 Ω

Mounting Torque: 5 Nm

Transducer Type: Displacement Measurement

Housing Diameter: 0.315 in

Housing Material: Stainless Steel

Measurement Note: Eddy current Mesurment Axial Shaft Position

Measurement, Max: 60 mil

Measurement, Min: 0 mil

Electrical Output: 4 to 20 mA

Enclosure Ratings: IP68, IP69

Power Consumption: 21 mA

Supply Power Note: +24 VDC (+12 VDC ... +32 VDC)

Frequency Response: Loop Frequency: DC to 0.8 Hz

Unthreaded Section: 15 mm

Wiring/Connector Table: Loop : white (+), black (-) Dynamic output: red (+), blue (-)

Integrated Cable Length: 0.5 dm

Process Connection Size: 3/8 in

Process Connection Type: UNF

Transmitter Body Length: 105 mm

Storage Temperature, Max: 125 °C

Storage Temperature, Min: -55 °C

Operating Temperature, Max: 105 °C

Operating Temperature, Min: -40 °C

Water tight Proof Pressure: Transmitter tip: 25 bar

Compensated Temperature, Max: 27 °C

Compensated Temperature, Min: 18 °C
