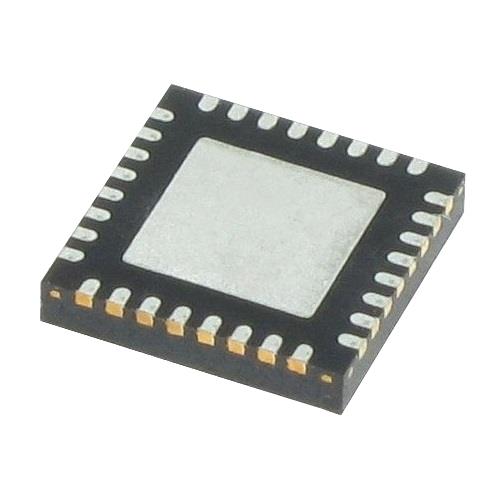

Bluetooth BLE 5 Sẵn sàng OTA QFN 32 chân 5x5mm Nordic Semiconductor nRF52810-QCAA-R
Hãng sản xuất: Nordic Semiconductor Model: nRF52810-QCAA-R - Liên hệ
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222)730.39.68
TP. HCM: (028) 38.119.636
Core: ARM Cortex M4
Technology: Si
Sensitivity: - 93 dBm
Unit Weight: 739.600 mg
Output Power: 4 dBm
Data RAM Size: 24 kB
Data RAM Type: RAM
ADC Resolution: 12 bit
Data Bus Width: 32 bit
Interface Type: 2-Wire, SPI, UART
Mounting Style: SMD/SMT
Development Kit: nRF52 DK
Number of Timers: 8 Timer
Processor Series: nRF52
Maximum Data Rate: 2 Mbps
Moisture Sensitive: Yes
Operating Frequency: 2.4 GHz
Program Memory Size: 192 kB
Program Memory Type: Flash
Supply Voltage - Max: 3.6 V
Supply Voltage - Min: 1.7 V
Number of ADC Channels: 8 Channel
Maximum Clock Frequency: 64 MHz
Supply Current Receiving: 4.6 mA
Supply Current Transmitting: 7.5 mA
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
