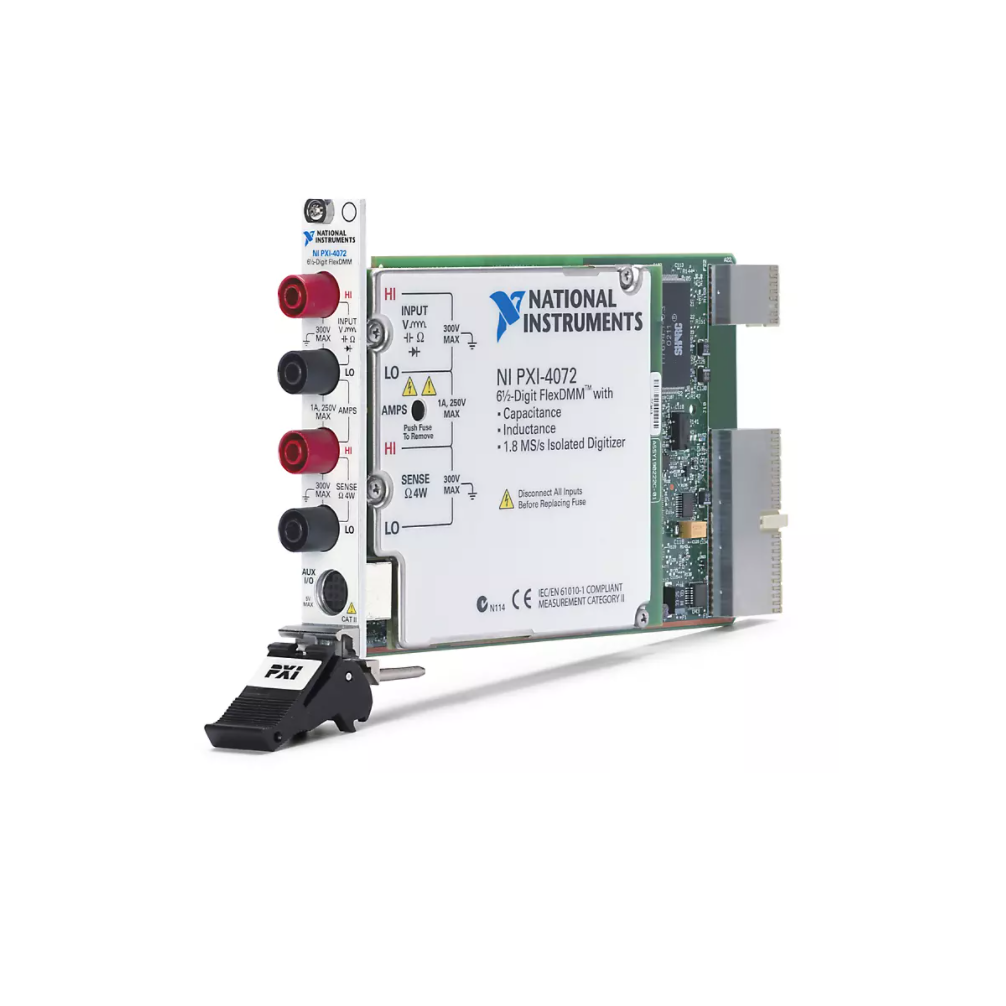

PXI Digital Multimeter NI PXI-4072 (DC ±300V/±3A, 1.8 MS/s, L&C Measurement)
Hãng sản xuất: NI Model: PXI-4072 P/N: 778270-01 - Liên hệ
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222)730.39.68
TP. HCM: (028) 38.119.636
Bus Connector: PXI Hybrid
Digits of Resolution: 6.5
DC Voltage Range: -300 V to 300 V
DC Current Range: -1 A to 1A
L&C Measurements: Yes
Maximum Sample Rate: 1.8 MS/s
Basic DC Voltage Accuracy: 25 ppm
Performs voltage, current, resistance, temperature, inductance, capacitance, and frequency/period measurements, as well as diode tests, in PXI systems.
PXI Digital Multimeters, or DMMs, feature AC/DC voltage, AC/DC current, 2- or 4-wire resistance, and frequency/period measurements, as well as diode tests. You can also choose a PXI DMM with an isolated, high-voltage digitizer that can acquire waveforms at sample rates up to 1.8 MS/s at full input range, up to 3 A or 1,000 V. Additionally, you can choose a PXI DMM that can perform basic inductance and capacitance measurements.
Datasheet
