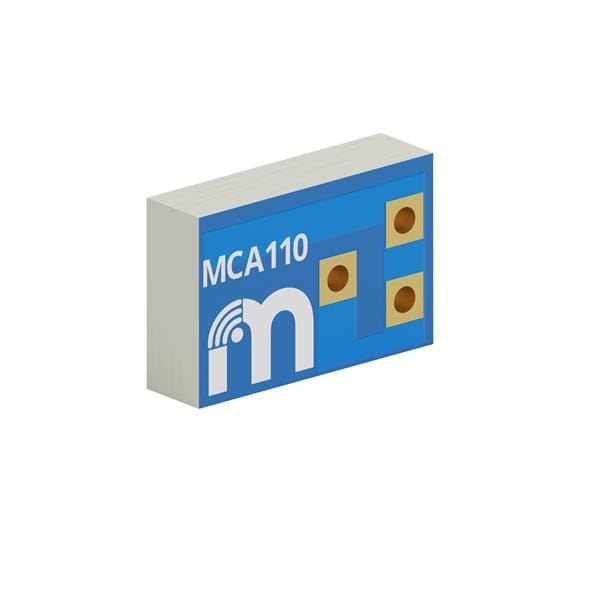

Ăng-ten thụ động WiFi - ăng-ten 6E 5.925 - 7.125 GHz Mobix Labs MCA110
Hãng sản xuất: Mobix Labs Model: MCA110 - Liên hệ
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222)730.39.68
TP. HCM: (028) 38.119.636
Gain: 3.2 dBi to 4.5 dBi
VSWR: 2
Style: Ceramic
Width: 7.25 mm
Height: 3 mm
Length: 11 mm
Bandwidth: 1.2 GHz
IP Rating: IP68
Impedance: 50 Ohms
Application: Access Points, Routers, Gateways, Set Top Box, Multi-band Equipment, Appliances, Wireless Devices
Power Rating: 2 W
Qualification: AEC-Q200
Mounting Style: PCB Mount
Frequency Range: 5.925 GHz to 7.125 GHz
Number of Bands: 1 Band
Center Frequency: 5.925 GHz, 6.525 GHz, 7.125 GHz
Mechanical Style: Chip
Maximum Frequency: 7.125 GHz
Minimum Frequency: 5.925 GHz
Termination Style: SMD/SMT
Moisture Sensitive: Yes
Protocol - Sub GHz: ISM
Protocol - WiFi - 802.11: WiFi 6E
Maximum Operating Temperature: + 75 C
Minimum Operating Temperature: - 40 C
Protocol - Cellular, NBIoT, LTE: 5G, Cellular (NBIoT, LTE)
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
