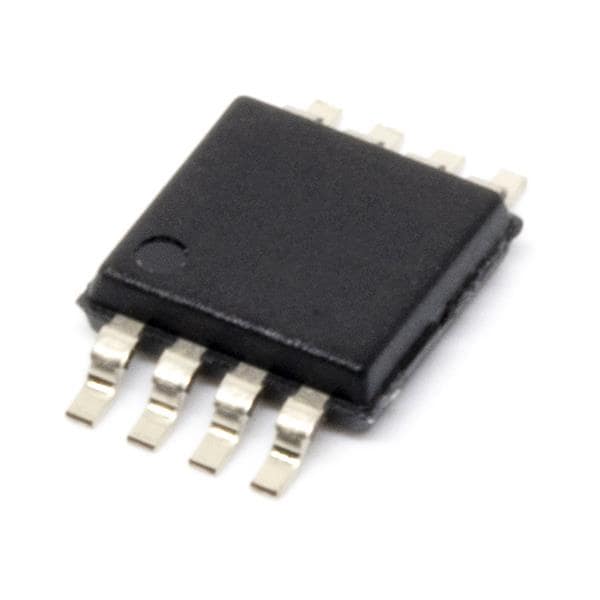

Digital Potentiometer ICs Sngl 7B V I2C Rheo Microchip Technology MCP4532T-502E/MS
Hãng sản xuất: Microchip Technology Model: MCP4532T-502E/MS - Liên hệ
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222)730.39.68
TP. HCM: (028) 38.119.636
Taper: Linear
Width: 3 mm
Height: 0.85 mm
Length: 3 mm
Tolerance: 20 %
Resistance: 5 kOhms
Supply Type: Single
Unit Weight: 140 mg
Taps per POT: 128 Tap
Wiper Memory: Volatile
Qualification: AEC-Q100
Mounting Style: PCB Mount
Number of POTs: Single
Digital Interface: Serial (2-Wire, I2C)
Termination Style: SMD/SMT
Moisture Sensitive: Yes
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 1.8 V
Temperature Coefficient: 150 PPM / C
Operating Supply Current: 2.5 uA
Operating Supply Voltage: 2.5 V, 3.3 V, 5 V
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
