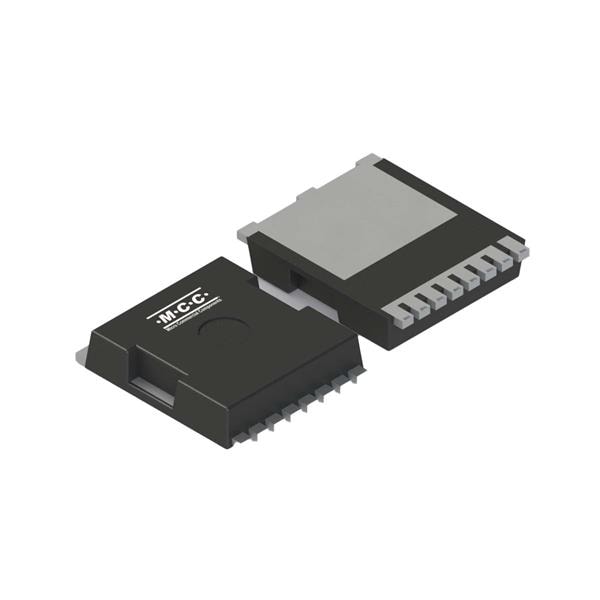

MOSFETs MOSFET KÊNH N, TOLL-8L-KS Micro Commercial Components (MCC) MCTK075N60FH-TP
Hãng sản xuất: Micro Commercial Components (MCC) Model: MCTK075N60FH-TP - Liên hệ
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222)730.39.68
TP. HCM: (028) 38.119.636
Fall Time: 15 ns
Rise Time: 34 ns
Technology: Si
Channel Mode: Enhancement
Configuration: Single
Mounting Style: SMD/SMT
Transistor Type: 1 N-Channel
Qg - Gate Charge: 81 nC
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Pd - Power Dissipation: 88 W
Vgs - Gate-Source Voltage: - 30 V, + 30 V
Typical Turn-On Delay Time: 113 ns
Typical Turn-Off Delay Time: 57 ns
Id - Continuous Drain Current: 19.5 A
Maximum Operating Temperature: + 150 C
Minimum Operating Temperature: - 55 C
Rds On - Drain-Source Resistance: 75 mOhms
Vds - Drain-Source Breakdown Voltage: 600 V
Vgs th - Gate-Source Threshold Voltage: 5 V
