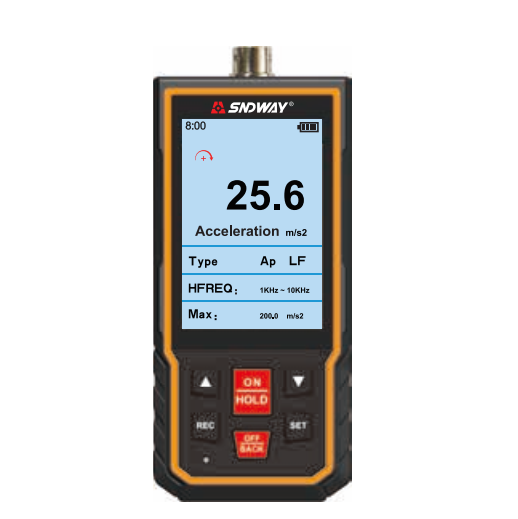

SNDWAY SW-67A Vibration Meter (±(5%+2dgts))

Display: 3.5" 320’480 Color LCD

Sensor:Split type voltage acceleration sensor

Sensor Wire Length: 3 Metter

Sensor Accessories: Long Sensor , Short sensor,Magnetic Probe, Screws

Acceleration Range: 0.1”199.9m/s2

Speed Range: 0.1-199.9mm/s

Velocity Range: 0.001-1.999mm

Displacement Range Accuracy: ±(5%+2dgts)

Testing Frequency in Low Frequency Acceleration: 10Hz-1KHz

Testing Frequency in High Frequency Acceleration: 1KHz-10KHz

Testing Frequency of Velocity: 10Hz-1KHz

Testing Frequency of Displacement: 10Hz-500Hz

Storage: 500 sets

Automatic Shutdown

Data Refresh Time: 500ms

Power Supply: Built in 3500mAh Li-ion

Battery: 15 hours for continuous working

Working Temperature: 0°C-50°C

Working Humidity: 20%-80%RH

Storage Temperature: -20°C-60°C

Storage Humidity: 20%”80%RH

Altitude: <2000m

Dimension: 150*70*30mm
