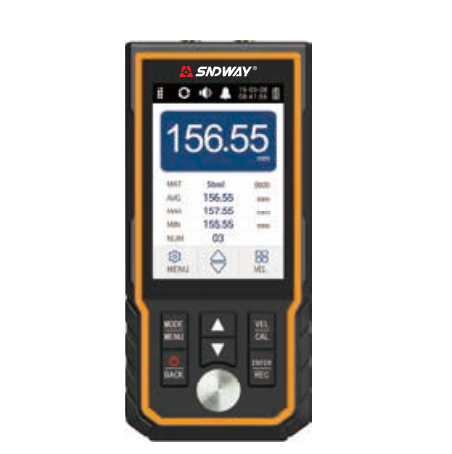

SNDWAY SW-6520 Ultrasonic Thickness Meter (1.00 - 300.00 mm)

Display: 3.5" 320x480 TFT LCD

Touch Screen: Capacitive Touch Screen

Measuring Range: 1.00 - 300.00 mm (the steel)

Sound Velocity: 1000 - 9999 m/s



-H<10mm, +0.05mm,

-10mmsH<75mm, +(0.5%H+0.01)mm;

-H*75mm, +(1%H+0.1)mm;

Standard Thickness of The Block: 4mm

Probe:5MHz g10mm

Memory: 8 groups*600 sets

Data export function:Connecting computer with USB Cable

Memory Contents:terial, Velocity of Sound, Unit, Measuring Value, the MAX value, the MIN value and Average Value

Main functions:Single Measurement, Continues Measurement, Alarm Measurement, Sound Velocity Measurement, Calibration

Power Supply: 3.7V 3500mAh Li-ion chargeable battery

Charging Specification: DC 5V/500mA Micro

Working Temperature: 0°C - 40°C

Storage Temperature & Humidity: -10 C -50 C Relative Humidity 10%“70%

Dimension: 150*70*30mm
