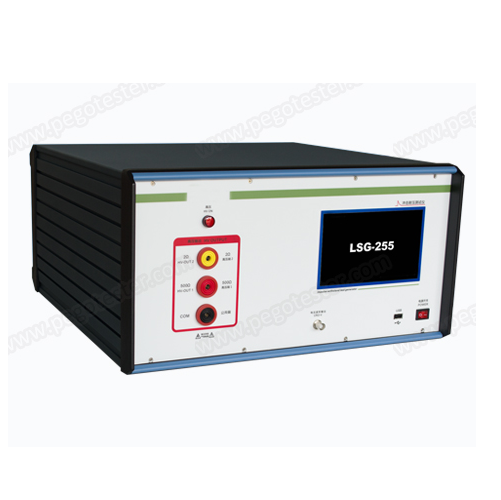

Skylark LSG-255 Impulse Voltage Generator (12KV; 1.2/50μs)

Open output voltage: 12KV (max)±5%

Frontier time: 1.2μs±30%

Half-value time: 50μs±20%

Output polarity: positive, negative, positive/negative automatically

Output impedance (optional): 2Ω/12Ω,500Ω±10%

Test times: 1~9999 times

Surge interval: 3~999s

Working environment: 15℃~35℃ (temperature), 10%~75% (humidity)

Working power: 220V±10% AC, 50/60Hz

Dimension: 470mm*260mm*500mm (W*H*D)

Weight: 35KG
