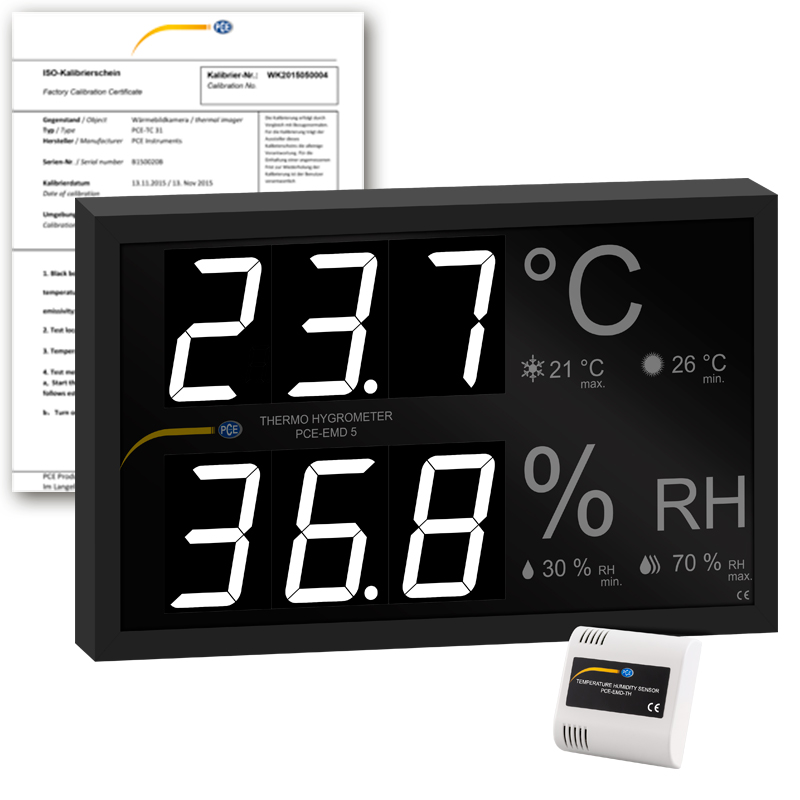

PCE EMD 5-ICA Thermo Hygrometer (0~50°C; 0~99.9 % RH; ISO Calibration Certificate)

- Measuring range temperature: 0.0 … 50.0 °C

Resolution: 0.1 °C

Accuracy: ±0.5 °C

- Measuring range humidity 0.0 … 99.9 % RH

Resolution: 0.1 % RH

Accuracy: ±3 % RH

- Further specifications

Response time: <15 seconds at a wind speed of <1 m/s

Display interval: 1 Hz

Number of usable sensors: 4

Digit height: 100 mm / 3.9"

Digit colour: white

Sensor supply voltage: 12 and 24 V DC

Maximum sensor supply current: 100 mA

Impedance current input: <200 Ω

Housing material: black painted aluminium housing

Screen protection: anti-reflective methacrylate

Housing material sensor: ABS

Protection class display: IP20

Protection class sensor: IP30

Power supply display: 110 ... 220 V AC 50 / 60 Hz

Maximum power consumption: 18 W

Mounting display: wall mounting, monitor stand (75 x 75 mm / 2.95 x 2.95")

Mounting sensor: wall mounting

Terminal strip power supply cable cross-section:

0.5 … 2.5 mm² (AWG 14) rigid cable

0.5 … 1.5 mm² (AWG 15) flexible cable

Terminal strip sensor connection cable cross-section:

0.14 … 0.15 mm² (AWG 18) rigid cable

0.15 … 1 mm² (AWG16) flexible cable

Terminal strip torque: 1.2 Nm

Terminal strip screw length: <12 mm / 0.47"

Dimensions display: 535 x 327 x 53 mm / 21.0 x 12.8 x 2.0"

Dimensions sensor: 80 x 80 x 35 mm / 3.1 x 3.1 x 1.3"

Operating conditions: -10 … 60 ºC, 5 … 95 % RH, non-condensing

Storage conditions: -20 … 70 ºC, 5 … 95 % RH, non-condensing

Weight display: 4579 g / 161.5 oz

Weight sensor: 66 g / 2.3 oz

Delivery Scope:

1 x Thermo Hygrometer PCE-EMD 5

2 x Wall mounting brackets

1 x Sensor module PCE-EMD-TH

1 x Instruction manual

1 x ISO Calibration Certificate

N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
