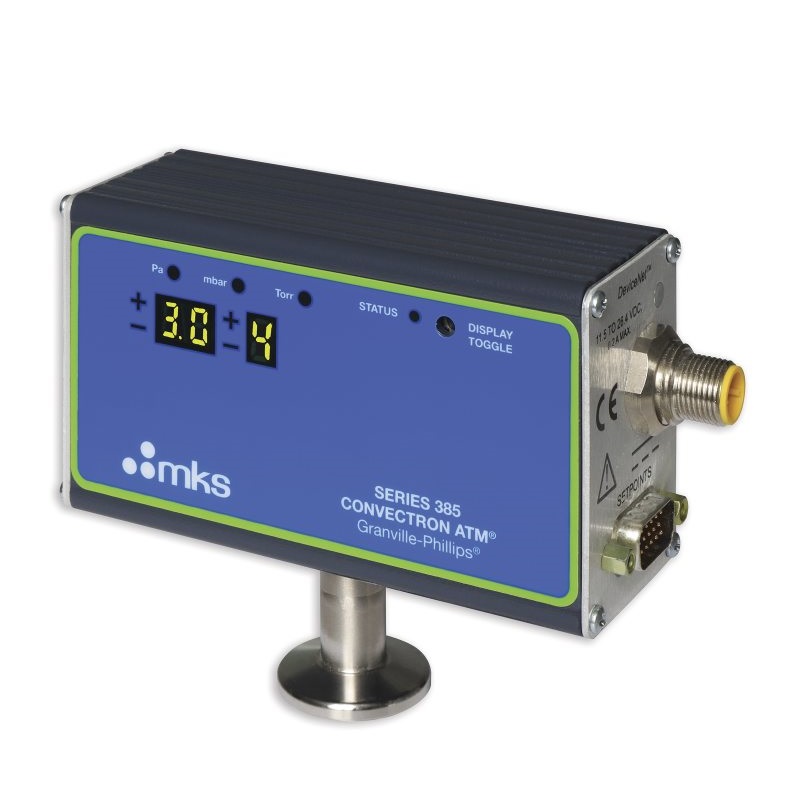

MKS 385 Convectron® ATM Vacuum Transducer (DeviceNet; NW16 ISO-KF)

Measurement Range: 1 x 10^-4 - 1000 Torr (for N2) Absolute

Set Point Range: 1 x 10^-4 - 1000 Torr, Absolute

Fitting Type: ISO-KF

Interface: DeviceNet

Connector: 15-pin, high density D-sub male

Operating Temperature; 0 - 40°C (32° to 104°F) ambient, non-condensing

Storage Temperature: -40 - 85°C (-40 - 185°F)

Relays: 4

Relay Contact Rating: 1 Amp @ 30 VDC resistive, or AC non-inductive

Exposed Materials: 304 stainless steel, borosilicate glass, Kovar®, alumina, NiFe alloy, polyimide, pyrex, ceramic, silicon, epoxy, RTV, Viton®, and nickel

Case Material: Aluminum extrusion with powder coat

Internal Volume: 35 cm3 (2.14 in3)

Units: Torr

Display: 3 digit green LED, automatic ranging

Differential Pressure Measurement Range: 750 Torr below Atmosphere to 250 Torr above Atmosphere

Differential Pressure Set Point Range: 750 Torr below Atmosphere to 125 Torr above Atmosphere

Differential Pressure Accuracy: ±2.5 Torr +2.5% of Reading

DeviceNet Version: ASCII format

DeviceNet Baud Rates: 125k, 250k, 500k (Default) switch selectable

DeviceNet Address: 0-63 (63 default) switch selectable
