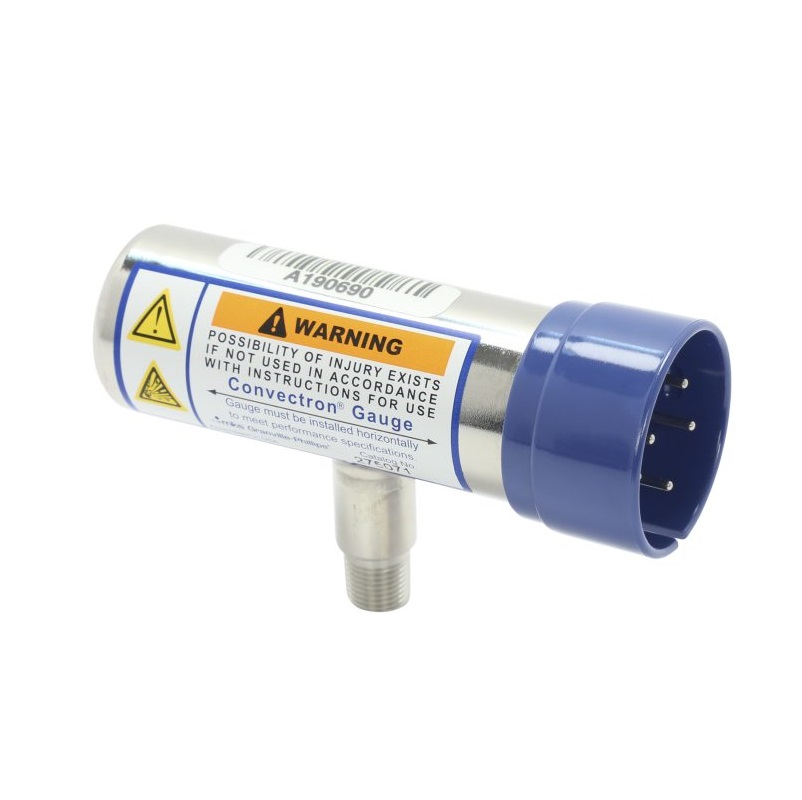

MKS 275 Convection-Enhanced Pirani Vacuum Pressure Sensors (ISO-KF, NW16)

Sensor Type: Convection-enhanced Pirani

Measurement Range: 1.0 x 10^-4 to 760 Torr

Fitting Type: ISO-KF

Flange Size: NW16

Filament: Gold Plated Tungsten

Exposed Materials: 304 stainless steel, borosilicate glass, Kovar®, Alumina, NiFe alloy, polyimide

Bake Out Temperature: 150°C

Operating Temperature: 4 - 50°C

Installation Orientation: Horizontal preferred

Internal Volume: 35 cm3 (2.14 in3)

Maximum Internal Pressure: 150 psi
