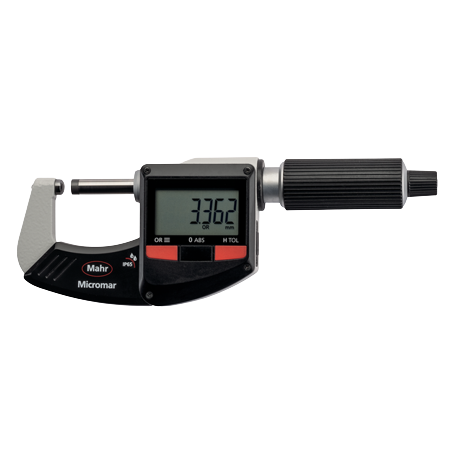

Mahr 4157131KAL Digital Micrometer (40 EWRi-R, 25-50mm, IP65)

Standard: DIN 863-3

Measuring range mm: 25-50mm

Measuring range inch: 1-2"

Material Contact surface: carbide

Resolution mm/inch: 0.001 / .00005"

Error limit µm: 4 µm

Battery type: CR 2032 (3V Lithium)

Spindle diameter: 6.5 mm

Spindle thread pitch: 0.5 mm

Measuring force (N)": 5 - 10

Details

Dimensions: a 32 mm | b 11.5 mm | c 57 mm |

Dimensional drawing 1

Brochure


Instruction
