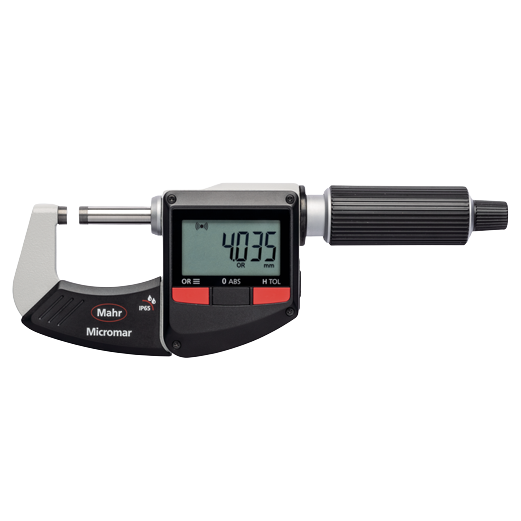

Mahr 4157105KAL Digital Micrometer (40 EWRi, 125-150mm, IP65)

Standard: DIN 863-1

Measuring range mm: 125-150mm

Measuring range inch: 5-6"

Material Contact surface: carbide

Resolution mm/inch: 0.001 / .00005"

Error limit µm: 6 µm

Battery type: CR 2032 (3V Lithium)

Parallel error in µm: 3 µm

Flatness in µm: 0.6 µm

Spindle diameter: 6.5 mm

Spindle thread pitch: 0.5 mm

Measuring force (N)": 5 - 10

Details

Dimensions: a 82 mm | b 13 mm | c 157 mm |

Dimensional drawing 1

Brochure


Instruction
