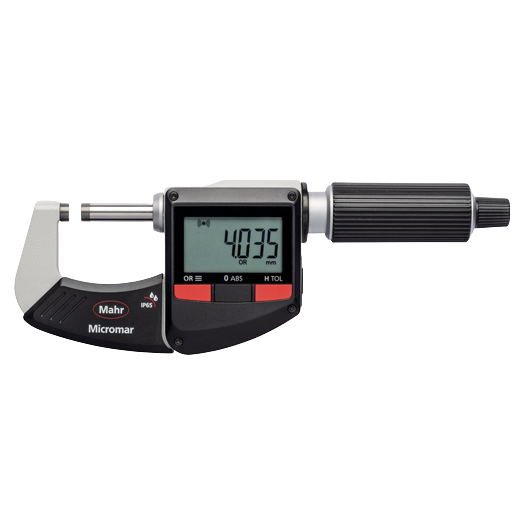

Mahr 4157101KAL Digital Micrometer (40 EWRi, 25-50mm, IP65)

Standard: Factory standard

Measuring range mm: 25-50mm

Measuring range inch: 1-2"

Material Contact surface: carbide

Resolution mm/inch: 0.001 / .00005"

Error limit µm: 2 µm

Battery type: CR 2032 (3V Lithium)

Parallel error in µm: 2 µm

Flatness in µm: 0.6 µm

Spindle diameter: 6.5 mm

Spindle thread pitch_mm: 0.5 mm

Measuring force (N)": 5 - 10

Details

Dimensions: a 36 mm | b 11 mm | c 57 mm |

Dimensional drawing 1

Brochure


Instruction
