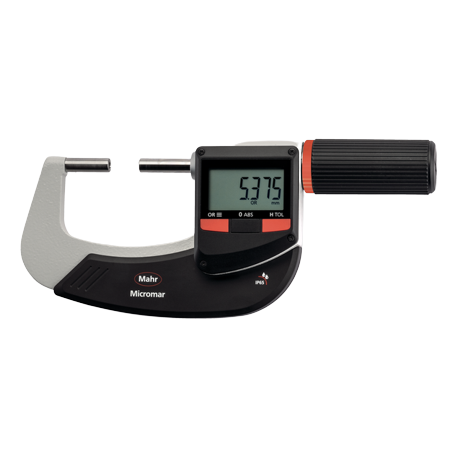

Mahr 4157047KAL Digital Micrometer (40 EWR-V, 50-75mm, IP65)

Standard: DIN 863-3

Measuring range mm: 50-75mm

Measuring range inch: 2-3"

Resolution mm/inch: 0.001 / .00005"

Error limit µm: 5 µm

Battery type: CR 2032 (3V Lithium)

Spindle diameter: 6.5 mm

Spindle thread pitch_mm: 5 mm

Measuring force (N)": 5 - 10

Details

Dimensions: a 57 mm | b 15.5 mm | c 107 mm |

Dimensional drawing 1

Instruction
