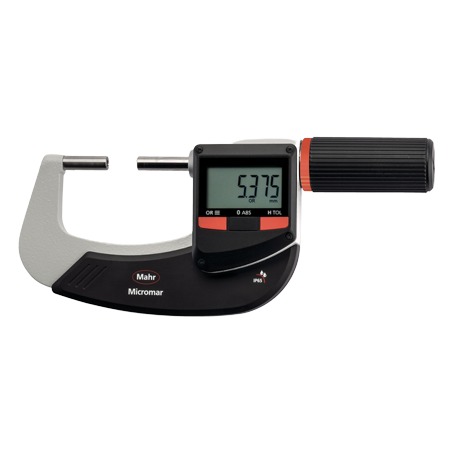

Mahr 4157046DKS Digital Micrometer (40 EWR-V, 25-50mm, IP65)

Standard: DIN 863-3

Measuring range mm: 25-50mm

Measuring range inch: 1-2"

Material Contact surface: hardened steel

Resolution mm/inch: 0.001 / .00005"

Error limit µm: 4 µm

Battery type: CR 2032 (3V Lithium)

Spindle diameter: 6.5 mm

Spindle thread pitch: 5 mm

Measuring force (N): 5 - 10

Details

Dimensions: a 44 mm | b 13.5 mm | c 82 mm |

Dimensional drawing 1
