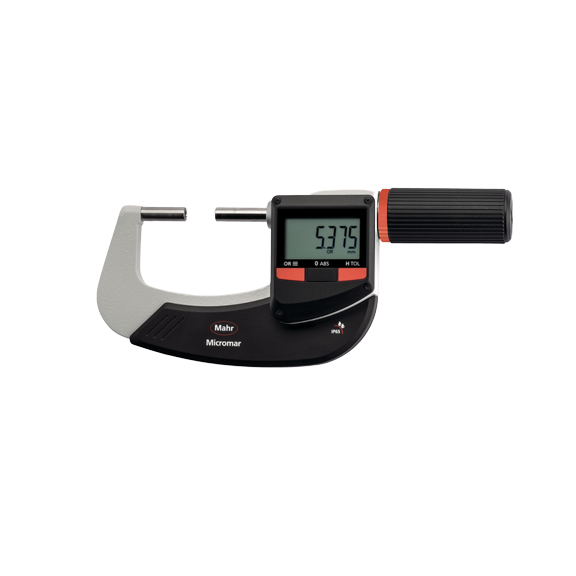

Mahr 4157045KAL Digital Micrometer (40 EWR-V 0-25mm, IP65)

Standard: DIN 863-3

Measuring range mm: 0-25mm

Measuring range inch: 0-1"

Resolution mm/inch: 0.001 / .00005"

Error limit µm: 4 µm

Battery type: CR 2032 (3V Lithium)

Spindle diameter: 6.5 mm

Spindle thread pitch_mm: 5 mm

Measuring force (N)": 5 - 10

Details

Dimensions: a 32 mm | b 11.5 mm | c 57 mm |

Dimensional drawing 1


Instruction
