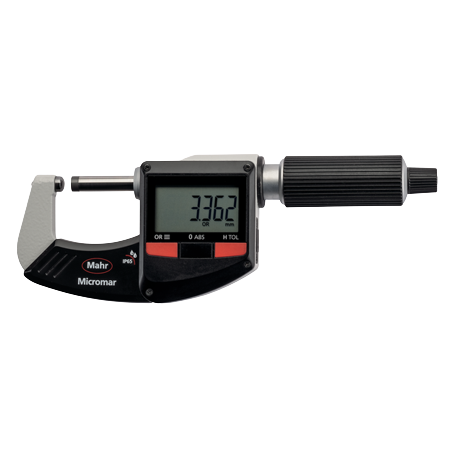

Mahr 4157030KAL Digital Micrometer (40 EWR-R, 0-25mm, IP65)

Standard: DIN 863-3

Measuring range mm: 0-25mm

Measuring range inch: 0-1"

Material Contact surface: carbide

Resolution mm/inch: 0.001 / .00005"

Error limit µm: 4 µm

Battery type: CR 2032 (3V Lithium)

Spindle diameter: 6.5 mm

Spindle thread pitch: 0.5 mm

Measuring force (N)": 5 - 10

Details

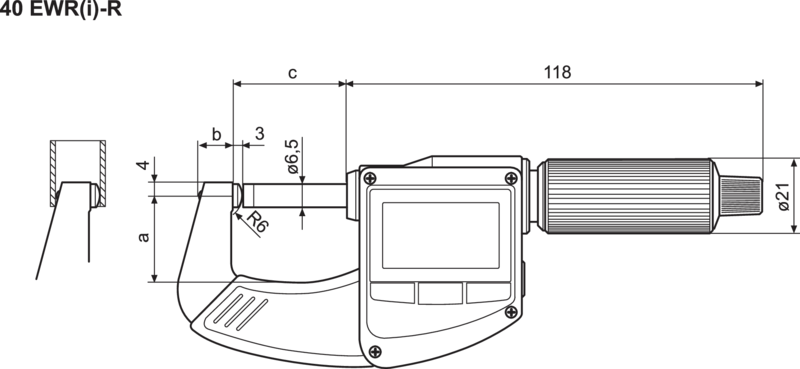

Dimensions: a 23 mm | b 9.5 mm | c 31.5 mm |

 Dimensional drawing 1
