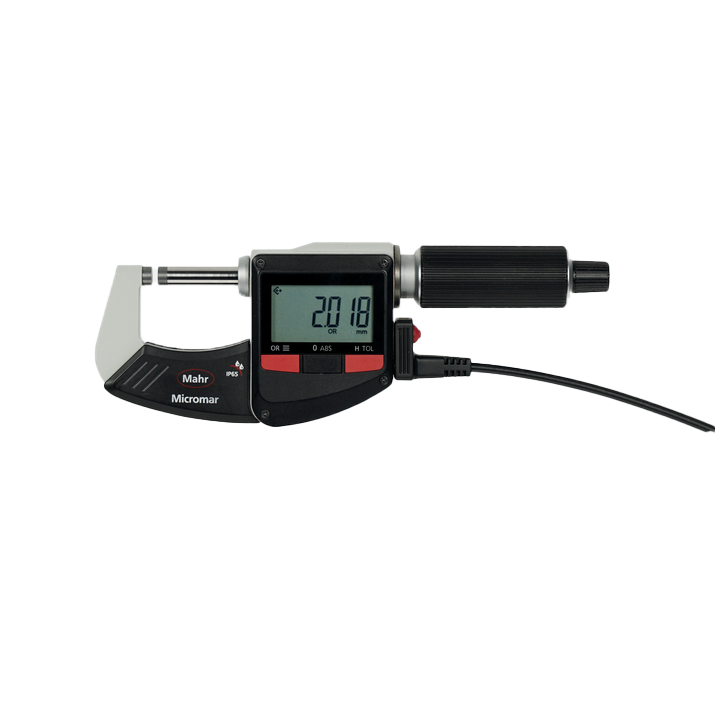

Mahr 4157006KAL Digital Micrometer (40 EWR, 150-175mm, IP65)

Standard: DIN 863-1

Measuring range mm: 150-175mm

Measuring range inch: 6-7"

Material Contact surface: carbide

Resolution mm/inch: 0.001 / .00005"

Error limit µm: 7 µm

Battery type: CR 2032 (3V Lithium)

Parallel error in µm: 4 µm

Flatness in µm: 0.6 µm

Spindle diameter: 6.5 mm

Spindle thread pitch: 0.5 mm

Measuring force (N)": 5 - 10

Details

Dimensions: a 95 mm | b 13 mm | c 182 mm |

Dimensional drawing 1
